CY8C4045FNI-S412T - Infineon

Description: ARM® Cortex®-M0+ PSOC® 4 CY8C4000S Microcontroller IC 32-Bit Single-Core 48MHz 32KB (32Kx8) FLASH 25-WLCSP (2.02x1.93)

Download CY8C4045FNI-S412T Model

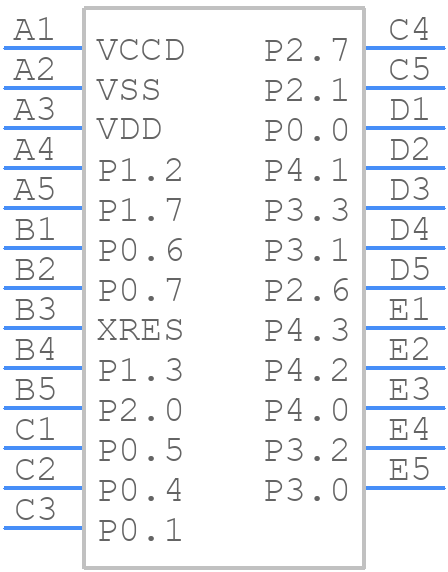

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CY8C4045FNI-S412T - Infineon PCB footprint - BGA - BGA - 25-ball WLCSP (2.02 × 1.93 × 0.48 mm)
click to zoom
3D Models
CY8C4045FNI-S412T - Infineon  - 3D model - BGA - 25-ball WLCSP (2.02 × 1.93 × 0.48 mm)
click to zoom

CY8C4045FNI-S412T Details

  • Manufacturer Part Number:

    CY8C4045FNI-S412T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-25

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5

  • JESD-30 Code:

    R-PBGA-B25

  • JESD-609 Code:

    e1

  • Length:

    2.022 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    25

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA25,5X5,14

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    0.482 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.35 mm

  • Terminal Position:

    BOTTOM

  • Width:

    1.932 mm

  • uPs/uCs/Peripheral ICs Type:

    PROGRAMMABLE SoC

CY8C4045FNI-S412T Frequently Asked Questions (FAQs)

  • The recommended crystal oscillator frequency for the CY8C4045FNI-S412T is 32.768 kHz, which is a standard frequency for most microcontrollers.
  • The internal clock source can be configured using the Clock Divider Register (CLKDIV) and the IMO (Internal Main Oscillator) trim registers. Refer to the device's technical reference manual for detailed instructions.
  • The maximum current consumption of the CY8C4045FNI-S412T depends on the operating frequency, voltage, and other factors. According to the datasheet, the maximum current consumption is around 20 mA at 3.3V and 24 MHz.
  • Yes, the CY8C4045FNI-S412T has a low-power mode (Sleep mode) that can reduce power consumption to around 1 μA. Additionally, the device has a low-voltage operation range (1.71V to 3.6V) that can help reduce power consumption.
  • The CY8C4045FNI-S412T's flash memory can be programmed using the In-System Serial Programming (ISSP) protocol or the Cypress's PSoC Programmer software. Refer to the device's programming specification for detailed instructions.
