CY8C4045LQS-S411 - Infineon

Description: ARM Microcontrollers - MCU PSoC4

Download CY8C4045LQS-S411 Model

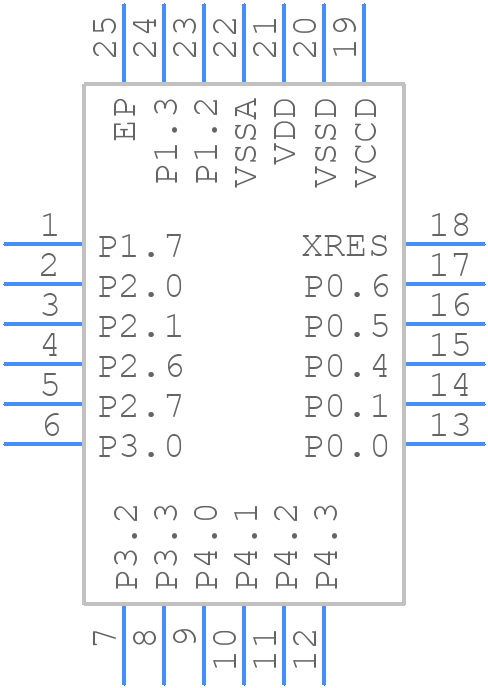

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CY8C4045LQS-S411 - Infineon PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CYPD3171-24LQXQ
click to zoom
3D Models
CY8C4045LQS-S411 - Infineon  - 3D model - Quad Flat No-Lead - CYPD3171-24LQXQ
click to zoom

CY8C4045LQS-S411 Details

  • Manufacturer Part Number:

    CY8C4045LQS-S411

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    13

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    PROGRAMMABLE SoC

CY8C4045LQS-S411 Frequently Asked Questions (FAQs)

  • The recommended crystal oscillator frequency for the CY8C4045LQS-S411 is 32.768 kHz. This frequency is used as the clock source for the internal real-time clock (RTC) and watchdog timer.
  • The GPIO pins on the CY8C4045LQS-S411 can be configured as analog or digital inputs using the Pin Configuration Register (PCR). The PCR register is used to set the pin mode, drive mode, and input buffer mode for each GPIO pin.
  • The maximum current that can be sourced or sunk by the GPIO pins on the CY8C4045LQS-S411 is 25 mA. However, it's recommended to limit the current to 10 mA or less to ensure reliable operation and prevent overheating.
  • The internal voltage regulator on the CY8C4045LQS-S411 can be used to power external components by connecting the VREG pin to the external component's power pin. The VREG pin provides a regulated 1.8V output that can supply up to 50 mA of current.
  • The VBAT pin on the CY8C4045LQS-S411 is used to connect a battery or supercapacitor to provide power to the internal real-time clock (RTC) and other components during power-down modes. This allows the device to retain its configuration and RTC settings even when the main power supply is removed.
