CY8C4046FNI-T412T - Infineon

Description: 32-bit MCU subsystem - 48-MHz Arm® Cortex®-M0+ CPU with single-cycle multiply - Up to 64 KB of flash with read accelerator - Up to 8 KB of SRAM • Low-power 1.71 V to 5.5 V operation - Deep Sleep mode with 6 µA always-on touch sensing - Active touch detection and tracking with 200 µA (average) • Fifth-generation CAPSENSE™ sensing with multi-sense converter - All-new ratio-metric sensing architecture with multi-sense converter low-power (MSCLP) provides best-in-class signal-to-noise ratio (SNR) (>5:1

Download CY8C4046FNI-T412T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

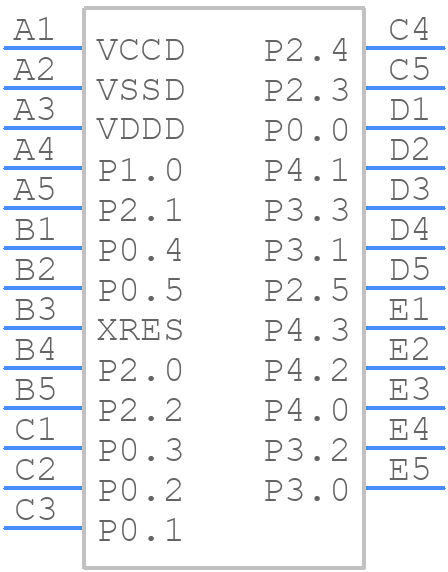

Symbol
CY8C4046FNI-T412T - Infineon - PCB symbol
click to zoom
PCB Footprints
CY8C4046FNI-T412T - Infineon PCB footprint - BGA - BGA - 25-ball WLCSP_2022..
click to zoom
3D Models
CY8C4046FNI-T412T - Infineon - 3D model - BGA - 25-ball WLCSP_2022..
click to zoom

CY8C4046FNI-T412T Details

  • Manufacturer Part Number:

    CY8C4046FNI-T412T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-25

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    12

  • JESD-30 Code:

    R-XBGA-B25

  • Length:

    2.046 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    25

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA25,5X5,14

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    0.467 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.35 mm

  • Terminal Position:

    BOTTOM

  • Width:

    1.961 mm

  • uPs/uCs/Peripheral ICs Type:

    PROGRAMMABLE SoC

CY8C4046FNI-T412T Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for CY8C4046FNI-T412T is 1.71V to 5.5V.
  • The clock source for CY8C4046FNI-T412T can be configured using the Clock Divider and the IMO (Internal Main Oscillator) or an external clock source. The configuration is done through the Clock Control Register (CLK_CTRL).
  • The maximum frequency of the IMO in CY8C4046FNI-T412T is 24 MHz.
  • The CapSense feature in CY8C4046FNI-T412T can be used by configuring the CapSense blocks, setting up the sensors, and using the CapSense API provided in the PSoC Creator or ModusToolbox software.
  • The maximum current consumption of CY8C4046FNI-T412T depends on the operating frequency and voltage. At 24 MHz and 3.3V, the maximum current consumption is around 20 mA.
