CY8C4046LQI-T452 - Infineon

Description: ARM® Cortex®-M0+ PSOC™ 4000T Microcontroller IC 32-Bit 48MHz 64KB (64K x 8) FLASH 24-QFN (4x4) , 1.71V ~ 5.5V , -40°C ~ 85°C (TA)

Download CY8C4046LQI-T452 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

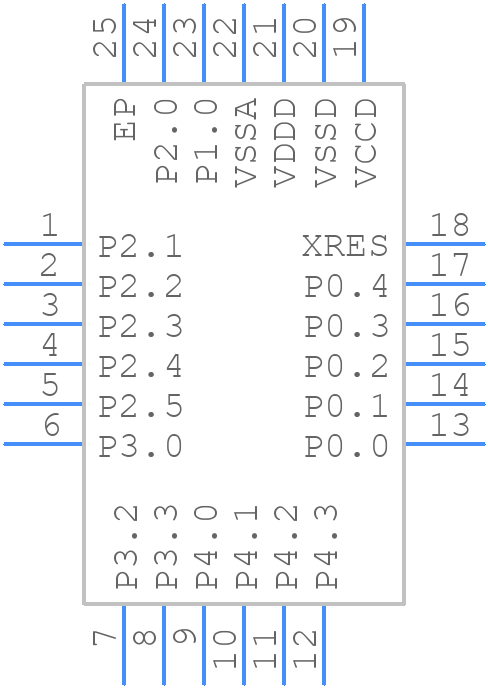

CY8C4046LQI-T452 - Infineon - PCB symbol
click to zoom
PCB Footprints
CY8C4046LQI-T452 - Infineon PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - PG-VQFN-24-802
click to zoom
3D Models
CY8C4046LQI-T452 - Infineon - 3D model - Quad Flat No-Lead - PG-VQFN-24-802
click to zoom

CY8C4046LQI-T452 Details

  • Manufacturer Part Number:

    CY8C4046LQI-T452

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-24

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    12

  • JESD-30 Code:

    S-PQCC-N24

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    PROGRAMMABLE SoC

CY8C4046LQI-T452 Frequently Asked Questions (FAQs)

  • The recommended crystal oscillator frequency for the CY8C4046LQI-T452 is 32.768 kHz, which is a standard frequency for most microcontrollers.
  • The internal clock source can be configured using the Clock Control Register (CLK_CR). The register allows you to select the clock source, configure the clock divider, and enable or disable the clock.
  • The maximum operating temperature range for the CY8C4046LQI-T452 is -40°C to +85°C, making it suitable for most industrial and commercial applications.
  • The CY8C4046LQI-T452 has several low-power modes, including Sleep, Hibernate, and Stop modes. These modes can be implemented using the Power Management Register (PMR) and the System Control Register (SCR).
  • The maximum current consumption of the CY8C4046LQI-T452 is approximately 20 mA at 3.3V and 25°C, depending on the operating frequency and mode.
