CY8C4124PVI-432 - Infineon

Description: ARM Microcontrollers - MCU 16KB FLASH 4KB SRAM PSOC 4

Download CY8C4124PVI-432 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

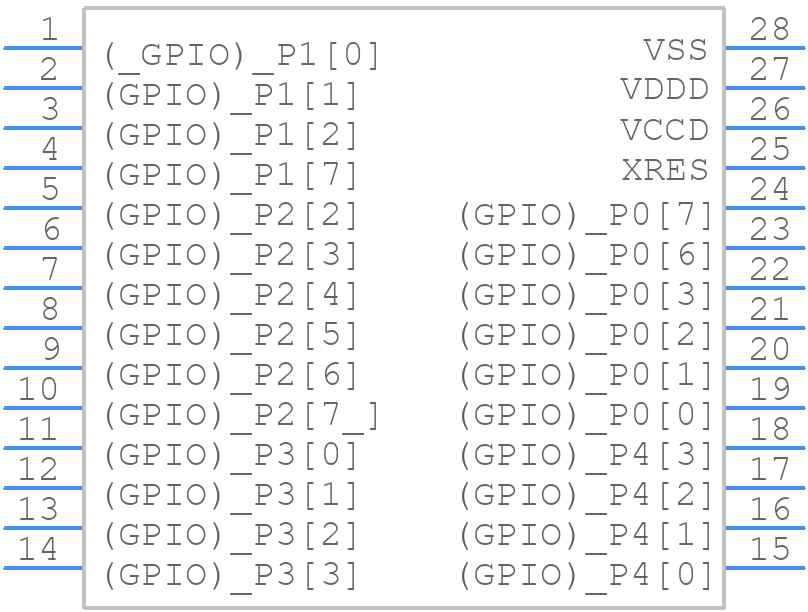

Symbol
CY8C4124PVI-432 - Infineon - PCB symbol
click to zoom
PCB Footprints
CY8C4124PVI-432 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 28-Pin SOop
click to zoom
3D Models
CY8C4124PVI-432 - Infineon - 3D model - Small Outline Packages - 28-Pin SOop
click to zoom

CY8C4124PVI-432 Details

  • Manufacturer Part Number:

    CY8C4124PVI-432

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

  • uPs/uCs/Peripheral ICs Type:

    PROGRAMMABLE SoC

CY8C4124PVI-432 Frequently Asked Questions (FAQs)

  • The recommended crystal oscillator frequency for the CY8C4124PVI-432 is 24 MHz or 32 kHz, depending on the application requirements.
  • The GPIO pins can be configured for analog or digital functionality using the Pin Configuration Register (PCR) and the Analog Mux Register (AMUX). Refer to the device's TRM (Technical Reference Manual) for more information.
  • The maximum current that can be sourced or sunk by the GPIO pins is 25 mA, but this value can be limited by the device's power consumption and thermal dissipation capabilities.
  • The CY8C4124PVI-432 has a built-in watchdog timer that can be enabled and configured using the Watchdog Timer Control Register (WDT_CTRL). The watchdog timer can be used to reset the device in case of a software or hardware fault.
  • The maximum operating temperature range for the CY8C4124PVI-432 is -40°C to +85°C, but this range can be limited by the specific application and operating conditions.
