CY8C4125AZI-M433 - Infineon

Description: CY8C4125 - PSoC4, ARM Cortex M0+ Microcontroller, Programmable Analog/Digital, CMOS (Status: Active)

Download CY8C4125AZI-M433 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

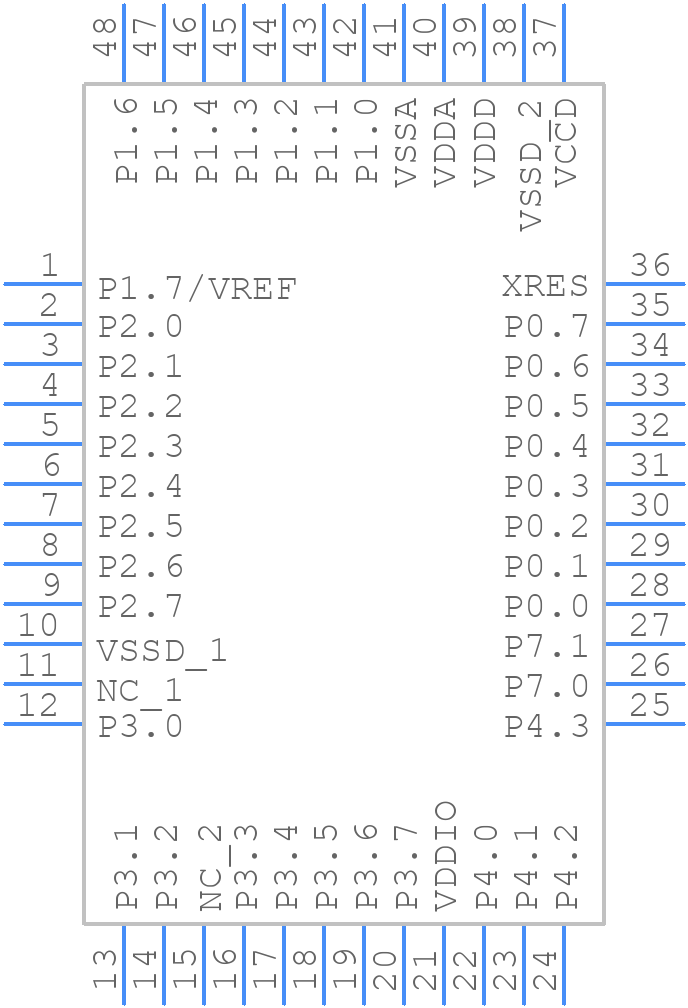

CY8C4125AZI-M433 - Infineon - PCB symbol
click to zoom
PCB Footprints

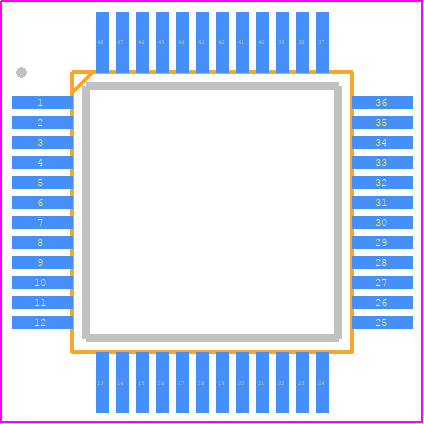

CY8C4125AZI-M433 - Infineon PCB footprint - Quad Flat Packages - Quad Flat Packages - 48-pin TQFP (7 × 7 × 1.4 mm) A48
click to zoom
3D Models
CY8C4125AZI-M433 - Infineon - 3D model - Quad Flat Packages - 48-pin TQFP (7 × 7 × 1.4 mm) A48
click to zoom

CY8C4125AZI-M433 Details

  • Manufacturer Part Number:

    CY8C4125AZI-M433

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    4

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Pure Tin (Sn)

  • uPs/uCs/Peripheral ICs Type:

    PROGRAMMABLE SoC

CY8C4125AZI-M433 Frequently Asked Questions (FAQs)

  • The recommended crystal oscillator frequency for the CY8C4125AZI-M433 is 24 MHz or 32 kHz, depending on the application requirements.
  • The GPIO pins can be configured using the Pin Configuration Register (PCR) and the Analog Mux Register (AMUX). Refer to the device's TRM (Technical Reference Manual) for detailed information.
  • The maximum current that can be sourced or sunk by the GPIO pins is 25 mA, but this value can be limited by the device's power consumption and thermal considerations.
  • The CY8C4125AZI-M433 has a built-in watchdog timer that can be enabled and configured using the Watchdog Timer Control Register (WDT_CTRL). Refer to the device's TRM for detailed information.
  • The maximum operating temperature range for the CY8C4125AZI-M433 is -40°C to +85°C, but this can be limited by the specific application and use case.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CY8C4125AZI-M433 Overview

Use the download button to access the CY8C4125AZI-M433 schematic symbol, PCB footprint, and 3D model.
