Technical Content
Part Image

CY8C4126AXI-M443 - Infineon

Description: ARM Microcontrollers - MCU PSoC4

Download CY8C4126AXI-M443 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

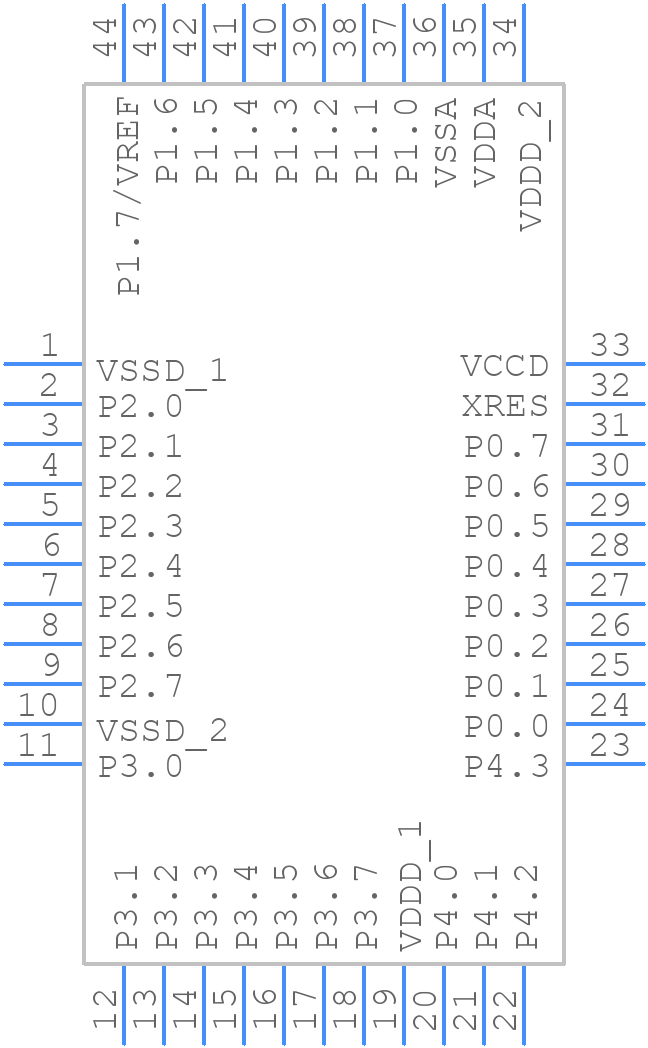

CY8C4126AXI-M443 - Infineon - PCB symbol
click to zoom
PCB Footprints
CY8C4126AXI-M443 - Infineon PCB footprint - Quad Flat Packages - Quad Flat Packages - CY8C4126AXI-M443
click to zoom
3D Models
CY8C4126AXI-M443 - Infineon - 3D model - Quad Flat Packages - CY8C4126AXI-M443
click to zoom

CY8C4126AXI-M443 Details

  • Manufacturer Part Number:

    CY8C4126AXI-M443

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    4

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    3

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • uPs/uCs/Peripheral ICs Type:

    PROGRAMMABLE SoC

CY8C4126AXI-M443 Frequently Asked Questions (FAQs)

  • The recommended crystal oscillator frequency for the CY8C4126AXI-M443 is 24 MHz, 32 kHz, or 32.768 kHz, depending on the application requirements.
  • The CY8C4126AXI-M443 has a USB 2.0 Full-Speed interface that can be configured using the USBFS component in the PSoC Creator or ModusToolbox software development environments. Refer to the respective software documentation for configuration details.
  • The CY8C4126AXI-M443 has an operating temperature range of -40°C to +85°C, making it suitable for industrial and commercial applications.
  • Yes, the CY8C4126AXI-M443 has a low power consumption of 2.5 mA/MHz in active mode and 1.5 μA in sleep mode, making it suitable for battery-powered devices. However, the power consumption depends on the specific application and usage.
  • The CY8C4126AXI-M443 has a built-in secure boot mechanism that can be configured using the PSoC Creator or ModusToolbox software development environments. Additionally, firmware updates can be implemented using the USB or I2C interfaces, or using a secure boot loader.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CY8C4126AXI-M443 Overview

Use the download button to access the CY8C4126AXI-M443 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY8C4, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
