The recommended crystal oscillator frequency for the CY8C4146AZI-S433T is 32.768 kHz, which is a standard frequency for most microcontrollers.
The internal clock source can be configured using the Clock Divider Register (CLKDIV) and the Clock Select Register (CLKSEL). Refer to the device's TRM (Technical Reference Manual) for more information.
The CY8C4146AZI-S433T has an operating temperature range of -40°C to +85°C, making it suitable for most industrial and commercial applications.
Yes, the CY8C4146AZI-S433T has a low power consumption of 2.5 mA/MHz in active mode and 1.5 μA in sleep mode, making it suitable for battery-powered devices.
The CY8C4146AZI-S433T has a built-in watchdog timer that can be enabled and configured using the Watchdog Timer Control Register (WDTCTL). Refer to the device's TRM for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CY8C4146AZI-S433T Overview

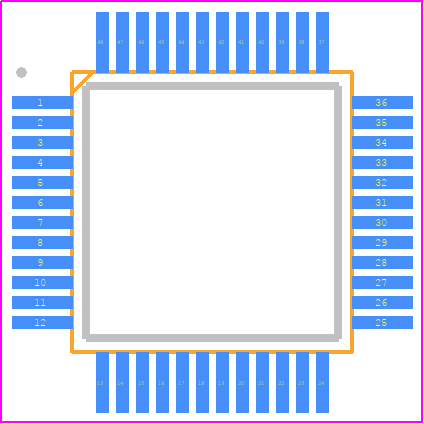

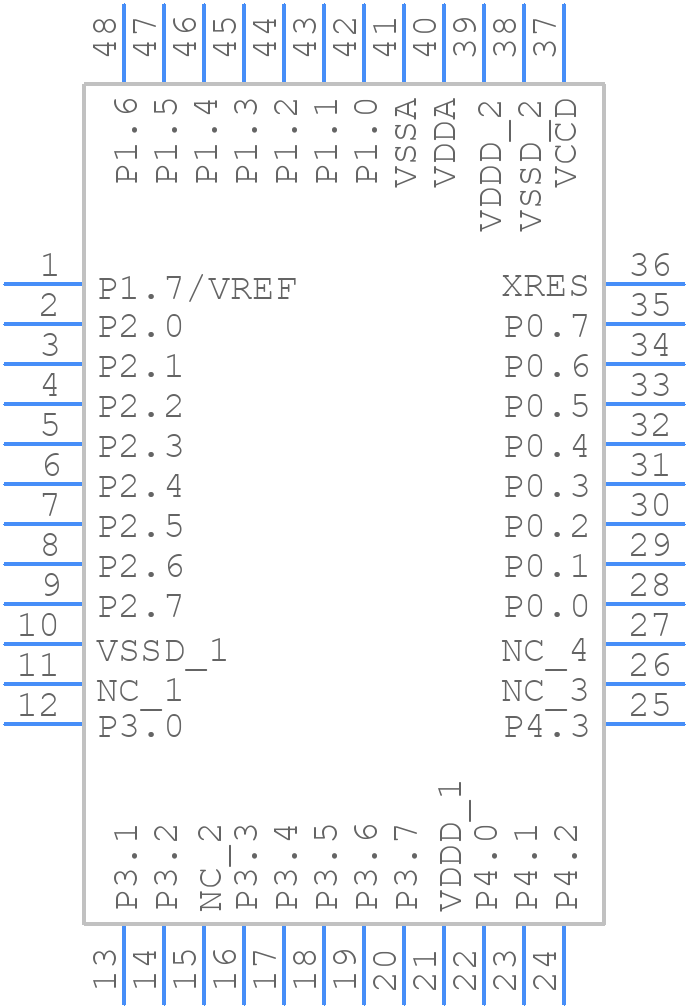

Use the download button to access the CY8C4146AZI-S433T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY8C4,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
