CY8C4146LQI-S422 - Infineon

Description: MCU 32-bit ARM Cortex M0+ RISC 64KB Flash 2.5V/3.3V/5V 32-Pin QFN EP Tray

Download CY8C4146LQI-S422 Model

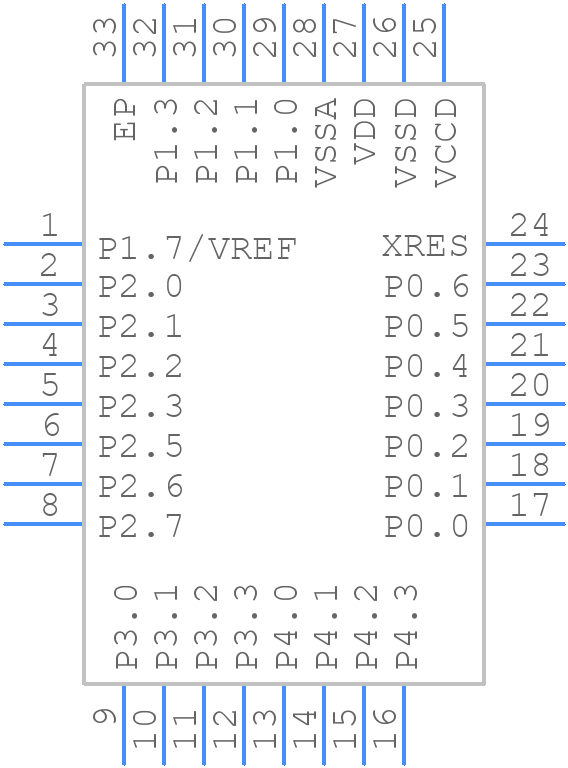

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CY8C4146LQI-S422 - Infineon PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-pin QFN (5 × 5 × 0.55 mm) LQ32 3.5 × 3.5 E-Pad (Sawn)--
click to zoom
3D Models
CY8C4146LQI-S422 - Infineon  - 3D model - Quad Flat No-Lead - 32-pin QFN (5 × 5 × 0.55 mm) LQ32 3.5 × 3.5 E-Pad (Sawn)--
click to zoom

CY8C4146LQI-S422 Details

  • Manufacturer Part Number:

    CY8C4146LQI-S422

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Pure Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    PROGRAMMABLE SoC

CY8C4146LQI-S422 Frequently Asked Questions (FAQs)

  • The recommended crystal oscillator frequency for the CY8C4146LQI-S422 is 24 MHz, 32 kHz, or 32.768 kHz, depending on the application requirements.
  • The GPIO pins can be configured for analog or digital functionality using the Pin Configuration Register (PCR) and the Analog Mux Register (AMUX). Refer to the device's TRM (Technical Reference Manual) for more information.
  • The maximum current that can be sourced or sunk by the GPIO pins is 4 mA, but this can be increased to 8 mA or 12 mA by using the High-Current Output Enable (HCOE) feature.
  • The CY8C4146LQI-S422 has a built-in watchdog timer that can be enabled and configured using the Watchdog Timer Control Register (WDT_CTRL). The watchdog timer can be set to reset the device or generate an interrupt if the timer expires.
  • The power consumption of the CY8C4146LQI-S422 varies depending on the operating mode. In Active mode, the current consumption is around 2.5 mA/MHz. In Sleep mode, the current consumption is around 1.5 μA, and in Hibernate mode, it is around 1 μA.
