CY8C4147LQS-S265 footprint, schematic symbol and 3D model by Infineon

Symbol

click to zoom

PCB Footprints

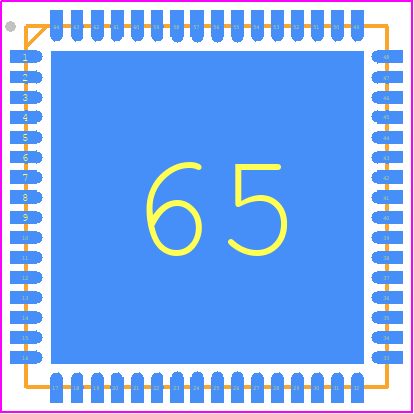

CY8C4147LQS-S265 - Infineon PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - PG-VQFN-64

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for CY8C4147LQS-S265
Part Number CY8C4147LQS-S265
Manufacturer Infineon
Pin Count 65
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - PG-VQFN-64
Released Date Aug 19, 2026
Last Modified Date Aug 19, 2026 5:41 AM UTC
Pinout / Pin List Click Here (Member Only)

CY8C4147LQS-S265 Details

Manufacturer Part Number:
CY8C4147LQS-S265
Rohs Code:
Yes
Part Life Cycle Code:
Active
HTS Code:
8542.31.00.30
Factory Lead Time:
4 Weeks
Manufacturer:
Infineon Technologies AG
JESD-30 Code:
S-PQCC-N64
Length:
9 mm
Moisture Sensitivity Level:
3
Number of Terminals:
64
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVQCCN
Package Equivalence Code:
LCC64,.35SQ,20
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Screening Level:
AEC-Q100
Seated Height-Max:
0.9 mm
Supply Voltage-Max:
5.5 V
Supply Voltage-Min:
1.8 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Technology:
CMOS
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
9 mm
uPs/uCs/Peripheral ICs Type:
PROGRAMMABLE SoC

CY8C4147LQS-S265 Frequently Asked Questions (FAQs)

The recommended crystal oscillator frequency for the CY8C4147LQS-S265 is 24 MHz, 32 kHz, or 32.768 kHz, depending on the application requirements.
The internal voltage regulator can be configured using the VREG register. The VREG register allows you to select the voltage regulator mode, enable or disable the regulator, and set the regulator voltage output.
The maximum current that can be sourced or sunk by the GPIO pins is 25 mA per pin, with a total current limit of 100 mA for all GPIO pins combined.
The CY8C4147LQS-S265 has a built-in watchdog timer that can be enabled and configured using the WDT_CSR register. The watchdog timer can be set to timeout after a specified period of inactivity, and can be reset using the WDT_RESET register.
The maximum operating temperature range for the CY8C4147LQS-S265 is -40°C to +85°C, with a storage temperature range of -50°C to +150°C.
