CY8C4147LQS-S473 - Infineon

Description: ARM® Cortex®-M0+ series Microcontroller IC 32-Bit 48MHz 128KB (128K x 8) FLASH 40-QFN (6x6)

Download CY8C4147LQS-S473 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

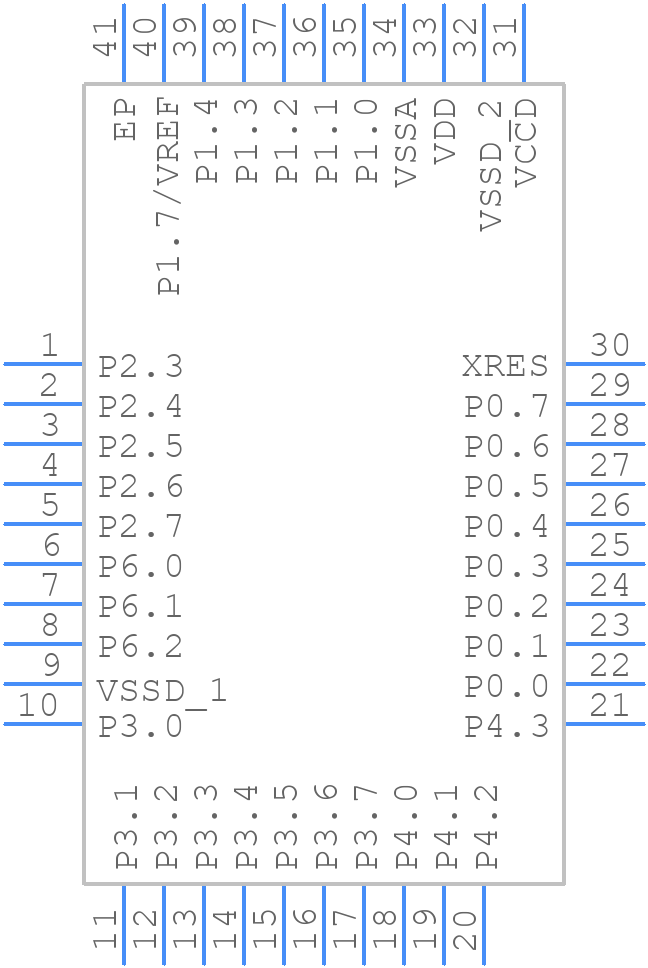

CY8C4147LQS-S473 - Infineon - PCB symbol
click to zoom
PCB Footprints
CY8C4147LQS-S473 - Infineon PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 40-QFN_2022
click to zoom
3D Models
CY8C4147LQS-S473 - Infineon - 3D model - Quad Flat No-Lead - 40-QFN_2022
click to zoom

CY8C4147LQS-S473 Details

  • Manufacturer Part Number:

    CY8C4147LQS-S473

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Pure Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    PROGRAMMABLE SoC

CY8C4147LQS-S473 Frequently Asked Questions (FAQs)

  • The recommended crystal oscillator frequency for the CY8C4147LQS-S473 is 24 MHz, 32 kHz, or 32.768 kHz, depending on the application requirements.
  • The GPIO pins can be configured using the Pin Configuration Register (PCR) and the Analog Mux Register (AMUX). The PCR sets the pin as analog or digital, while the AMUX selects the analog function for the pin.
  • The maximum current that can be sourced or sunk by the GPIO pins is 4 mA, but this can be increased to 8 mA or 12 mA by using the High-Current Mode (HCM) feature.
  • The CY8C4147LQS-S473 has a built-in watchdog timer that can be enabled and configured using the Watchdog Timer Control Register (WDT_CTRL). The watchdog timer can be set to reset the device or generate an interrupt if the timer expires.
  • The power consumption of the CY8C4147LQS-S473 varies depending on the operating mode. In Active mode, the current consumption is around 2.5 mA at 3V and 24 MHz. In Sleep mode, the current consumption is around 1.5 μA at 3V. In Hibernate mode, the current consumption is around 0.5 μA at 3V.
