CY8C4245FNI-483T - Infineon

Description: ARM Microcontrollers - MCU Programmable System- on-Chip

Download CY8C4245FNI-483T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

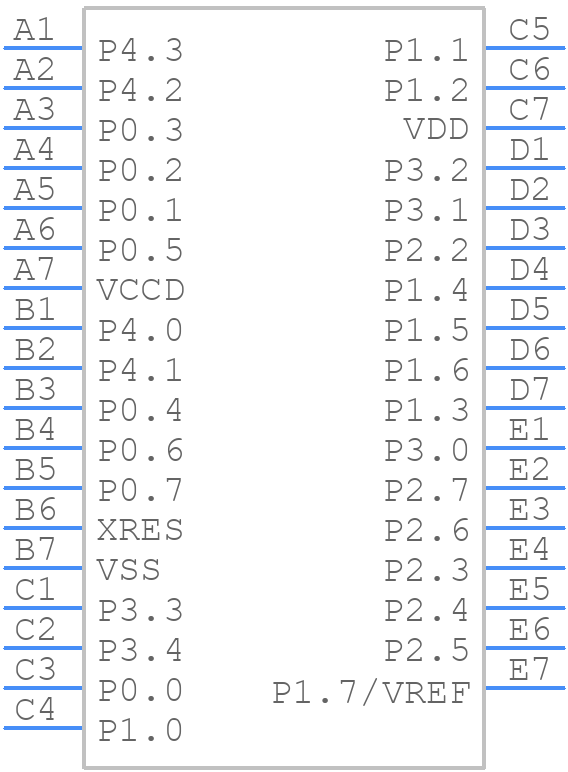

CY8C4245FNI-483T - Infineon - PCB symbol
click to zoom
PCB Footprints
CY8C4245FNI-483T - Infineon PCB footprint - BGA - BGA - 35-ball WLCSP
click to zoom
3D Models
CY8C4245FNI-483T - Infineon - 3D model - BGA - 35-ball WLCSP
click to zoom

CY8C4245FNI-483T Details

  • Manufacturer Part Number:

    CY8C4245FNI-483T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    WLCSP-35

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • JESD-30 Code:

    R-XBGA-B35

  • JESD-609 Code:

    e1

  • Length:

    3.23 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    35

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA35,5X7,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    0.55 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Width:

    2.1 mm

  • uPs/uCs/Peripheral ICs Type:

    PROGRAMMABLE SoC

CY8C4245FNI-483T Frequently Asked Questions (FAQs)

  • The recommended crystal oscillator frequency for the CY8C4245FNI-483T is 32.768 kHz. This frequency is used as the clock source for the internal real-time clock (RTC) and watchdog timer.
  • The GPIO pins on the CY8C4245FNI-483T can be configured as analog or digital inputs using the Pin Configuration Register (PCR). The PCR register is used to set the pin mode, drive mode, and input buffer mode for each GPIO pin.
  • The maximum current that can be sourced or sunk by the GPIO pins on the CY8C4245FNI-483T is 25 mA. However, it's recommended to limit the current to 10 mA or less to ensure reliable operation and prevent overheating.
  • The internal voltage regulator on the CY8C4245FNI-483T can be used to power external components by connecting the VREG pin to the external component's power pin. The VREG pin provides a regulated 1.8V or 3.3V output, depending on the configuration.
  • The VBAT pin on the CY8C4245FNI-483T is used to connect a battery or other power source to the internal real-time clock (RTC) and other low-power modes. This allows the microcontroller to maintain its internal state and continue to operate the RTC even when the main power source is removed.
