CY8C4247AXI-M485 - Infineon

Description: ARM Microcontrollers - MCU PSoC 4100M 32Bit MCU Programmable Analog

Download CY8C4247AXI-M485 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CY8C4247AXI-M485 - Infineon - PCB symbol
click to zoom
PCB Footprints

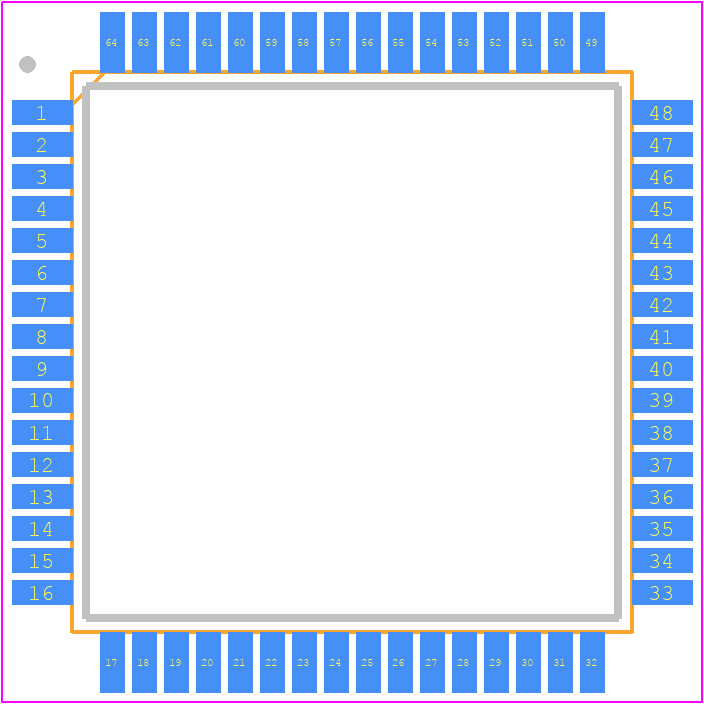

CY8C4247AXI-M485 - Infineon PCB footprint - Quad Flat Packages - Quad Flat Packages - 64-Pin 14 x14 x1.4mm
click to zoom
3D Models
CY8C4247AXI-M485 - Infineon - 3D model - Quad Flat Packages - 64-Pin 14 x14 x1.4mm
click to zoom

CY8C4247AXI-M485 Details

  • Manufacturer Part Number:

    CY8C4247AXI-M485

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TQFP-64

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    4

  • JESD-30 Code:

    S-PQFP-G64

  • JESD-609 Code:

    e4

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Equivalence Code:

    QFP64,.63SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    1.89 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    PROGRAMMABLE SoC

CY8C4247AXI-M485 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the CY8C4247AXI-M485 is -40°C to +85°C, with a maximum junction temperature of 125°C.
  • The clock source for the CY8C4247AXI-M485 can be configured using the Clock Divider (CLKDIV) register. The clock source can be set to either the internal oscillator, an external crystal oscillator, or an external clock source.
  • The maximum current consumption of the CY8C4247AXI-M485 is approximately 20mA at 3.3V and 25°C, depending on the operating mode and peripheral usage.
  • The CY8C4247AXI-M485 has several low-power modes, including Sleep, Hibernate, and Deep Sleep. These modes can be implemented using the Power Mode (PM) register and by configuring the peripherals to enter low-power states.
  • The maximum frequency of the CPU on the CY8C4247AXI-M485 is 50 MHz, although it can be clocked down to lower frequencies to reduce power consumption.
