CY8C4745AZI-S413 - Infineon

Description: Cypress Semiconductor CY8C4745AZI-S413, 32bit ARM Cortex M0 Microcontroller, 48MHz, 32 kB Flash, 48-Pin TQFP

Download CY8C4745AZI-S413 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

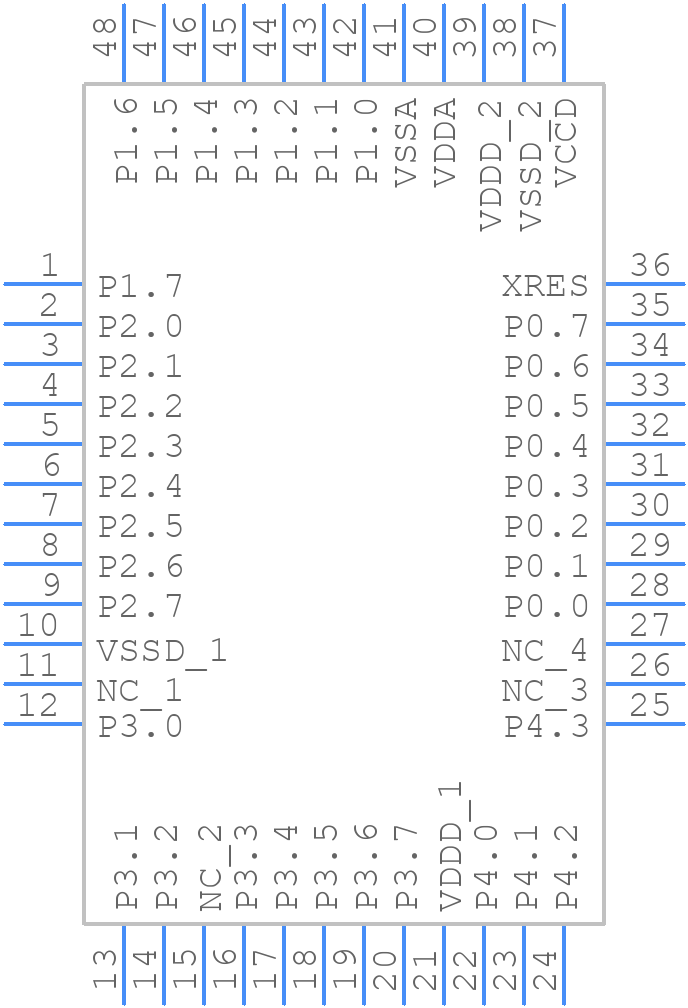

CY8C4745AZI-S413 - Infineon - PCB symbol
click to zoom
PCB Footprints

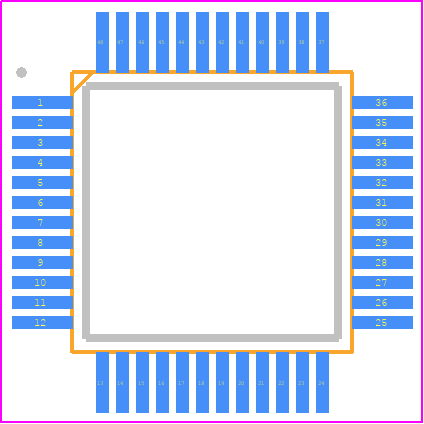

CY8C4745AZI-S413 - Infineon PCB footprint - Quad Flat Packages - Quad Flat Packages - CY8C4745AZI-S413
click to zoom
3D Models
CY8C4745AZI-S413 - Infineon - 3D model - Quad Flat Packages - CY8C4745AZI-S413
click to zoom

CY8C4745AZI-S413 Details

  • Manufacturer Part Number:

    CY8C4745AZI-S413

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Terminal Finish:

    Pure Tin (Sn)

  • uPs/uCs/Peripheral ICs Type:

    PROGRAMMABLE SoC

CY8C4745AZI-S413 Frequently Asked Questions (FAQs)

  • The recommended crystal oscillator frequency for the CY8C4745AZI-S413 is 32.768 kHz, which is the typical frequency used for real-time clock (RTC) applications.
  • To configure the internal voltage regulator (IMOD) for optimal power consumption, set the IMOD[1:0] bits in the IMO_CR register to '01' for low power mode or '10' for medium power mode. You can also adjust the voltage regulator output voltage by setting the VREG[2:0] bits in the VREG_CR register.
  • The maximum current that can be sourced or sunk by the GPIO pins of the CY8C4745AZI-S413 is 25 mA per pin, with a total current limit of 100 mA for all GPIO pins combined.
  • To implement a watchdog timer (WDT) in the CY8C4745AZI-S413, enable the WDT by setting the WDT_EN bit in the WDT_CR register, and then configure the WDT period by setting the WDT_PR[7:0] bits in the WDT_PR register. You can also reset the WDT by writing a '1' to the WDT_RST bit in the WDT_CR register.
  • The maximum operating temperature range for the CY8C4745AZI-S413 is -40°C to +85°C, with a storage temperature range of -50°C to +150°C.
