The recommended crystal oscillator frequency for the CY8C4745FNI-S412T is 32.768 kHz, which is a standard frequency for most microcontrollers.
The internal voltage regulator of the CY8C4745FNI-S412T can be configured using the VREG register. The VREG register allows you to select the voltage regulator mode, enable or disable the regulator, and set the regulator voltage output.
The maximum current that can be sourced or sunk by the GPIO pins of the CY8C4745FNI-S412T is 25 mA. However, it's recommended to limit the current to 10 mA or less to ensure reliable operation.
The CY8C4745FNI-S412T has a built-in watchdog timer that can be enabled and configured using the WDT register. The watchdog timer can be set to timeout after a specified period of inactivity, and can be reset using a software reset or a hardware reset.
The maximum operating temperature range for the CY8C4745FNI-S412T is -40°C to +85°C. However, it's recommended to operate the device within the recommended temperature range of 0°C to +70°C for optimal performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CY8C4745FNI-S412T Overview

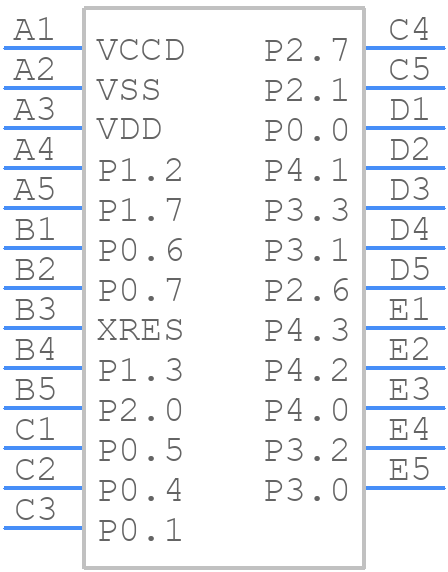

Use the download button to access the CY8C4745FNI-S412T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY8C4,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
