The recommended crystal oscillator frequency for the CY8C6244AZI-S4D92 is 32.768 kHz. This frequency is used as the clock source for the internal real-time clock (RTC) and watchdog timer.
The CY8C6244AZI-S4D92 has a USB 2.0 Full-Speed interface that can be configured using the USBFS component in the PSoC Creator IDE. The USB interface can be configured as a device, host, or OTG (on-the-go) device. Refer to the PSoC Creator documentation and the CY8C6244AZI-S4D92 datasheet for more information.
The CY8C6244AZI-S4D92 has an operating temperature range of -40°C to +85°C. However, the device can be operated at temperatures up to 105°C for short periods of time (e.g., during device startup or shutdown).
The CY8C6244AZI-S4D92 has a secure boot feature that can be implemented using the PSoC Creator IDE. The secure boot feature uses a combination of cryptographic algorithms and secure key storage to ensure that only authorized firmware can be executed on the device. Refer to the PSoC Creator documentation and the CY8C6244AZI-S4D92 datasheet for more information.
The CY8C6244AZI-S4D92 has 256 KB of flash memory, of which up to 224 KB can be used for firmware storage. The remaining 32 KB is reserved for the boot loader and other system functions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CY8C6244AZI-S4D92 Overview

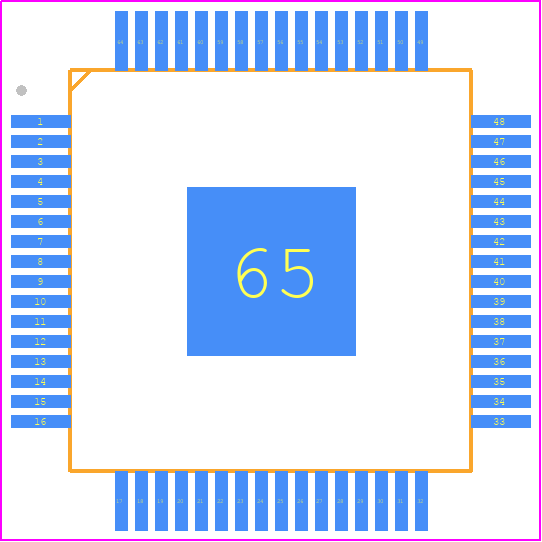

Use the download button to access the CY8C6244AZI-S4D92 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY8C6,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
