CY8C6336BZI-BLF03 - Infineon

Description: RF Microcontrollers - MCU PSOC6 USB, BLE, WiFi

Download CY8C6336BZI-BLF03 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

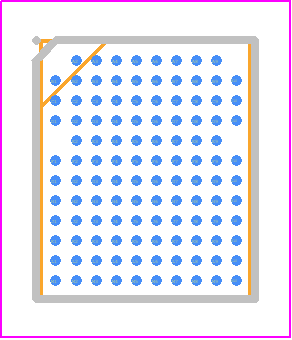

CY8C6336BZI-BLF03 - Infineon PCB footprint - BGA - BGA - 116-BGA 5.2 × 6.4 × 0.75 mm
click to zoom
3D Models
CY8C6336BZI-BLF03 - Infineon  - 3D model - BGA - 116-BGA 5.2 × 6.4 × 0.75 mm
click to zoom

CY8C6336BZI-BLF03 Details

  • Manufacturer Part Number:

    CY8C6336BZI-BLF03

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-116

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    13

  • JESD-30 Code:

    R-PBGA-B116

  • JESD-609 Code:

    e1

  • Length:

    6.4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    116

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA116,10X12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Seated Height-Max:

    0.7 mm

  • Supply Voltage-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Width:

    5.2 mm

  • uPs/uCs/Peripheral ICs Type:

    PROGRAMMABLE RFSoC
