Infineon provides a recommended PCB layout and thermal management guide in their application note AN215306, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal performance and thermal dissipation.
Infineon provides a Secure Boot and Firmware Update guide in their application note AN221774, which outlines the steps to implement secure boot and firmware updates using the PSoC Creator IDE and the CY8CMBR3106S-LQXI's built-in security features.
The CY8CMBR3106S-LQXI has a low power consumption of 1.5mA in active mode, but engineers should consider power gating, clock management, and sleep modes to minimize power consumption in battery-powered devices. Additionally, battery life estimation and power budgeting should be performed to ensure optimal system design.
The CY8CMBR3106S-LQXI's ADC can be optimized by selecting the appropriate ADC mode, setting the correct gain and offset, and using the built-in ADC calibration feature. Engineers should also consider noise reduction techniques, such as averaging and filtering, to improve ADC performance.
Infineon provides a range of debugging tools, including the PSoC Creator IDE, the CY8CMBR3106S-LQXI's built-in debug module, and external debuggers like the CY8CKIT-040. Engineers should use these tools to debug and troubleshoot their design, and follow best practices such as using print statements, breakpoints, and logic analyzers to identify and fix issues.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
CY8CMBR3106S-LQXI Overview

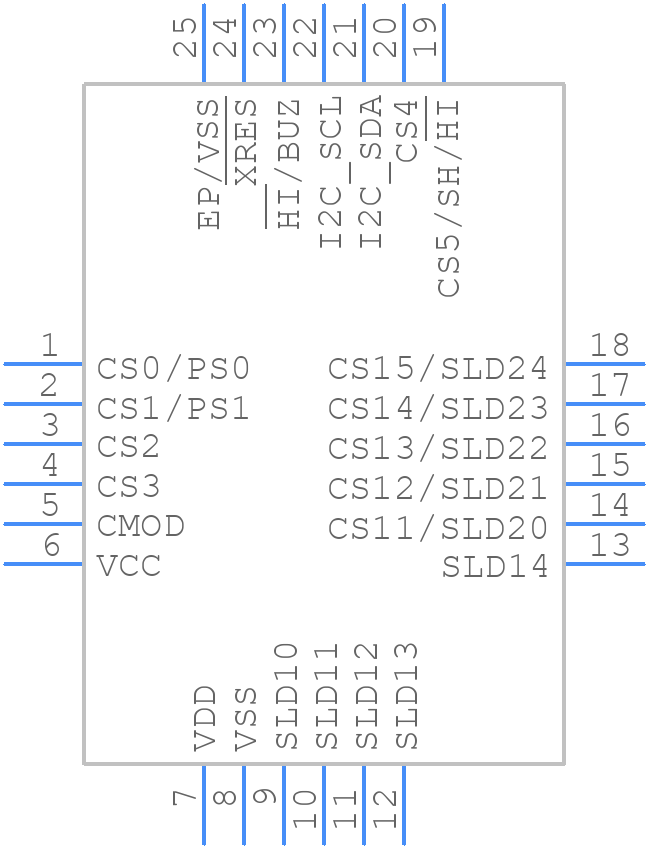

Use the download button to access the CY8CMBR3106S-LQXI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY8CM,
or try a keyword search, such as Other Interface ICs
