CY8CMBR3116-LQXI - Infineon

Description: Touch Screen Controllers CapSense Express 16 Buttons

Download CY8CMBR3116-LQXI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

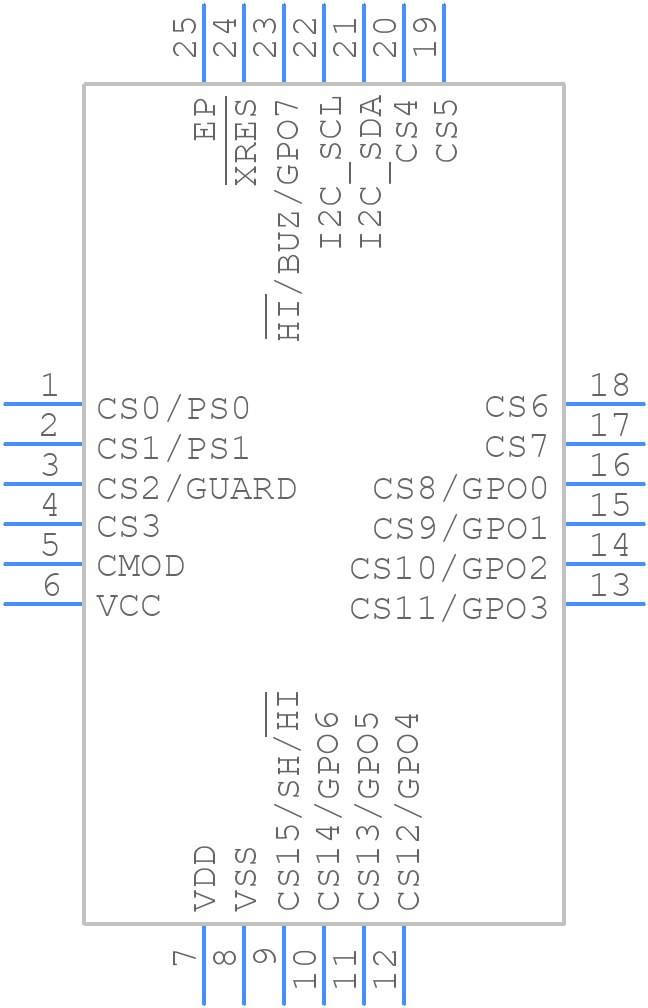

CY8CMBR3116-LQXI - Infineon - PCB symbol
click to zoom
PCB Footprints
CY8CMBR3116-LQXI - Infineon PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-pin QFN (4 ? 4 ? 0.55 mm)%0%0
click to zoom
3D Models
CY8CMBR3116-LQXI - Infineon - 3D model - Quad Flat No-Lead - 24-pin QFN (4 ? 4 ? 0.55 mm)%0%0
click to zoom

CY8CMBR3116-LQXI Details

  • Manufacturer Part Number:

    CY8CMBR3116-LQXI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-24

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • JESD-30 Code:

    S-XQCC-N24

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max:

    1.89 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    PSoC

CY8CMBR3116-LQXI Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common ground point for analog and digital grounds.
  • Use a shielded cable or a twisted pair for the sensor connections, and ensure that the sensor signals are properly filtered and debounced in software.
  • The CY8CMBR3116-LQXI is rated for operation from -40°C to +85°C, but the actual operating temperature range may be limited by the specific application and environmental conditions.
  • Use the device's built-in capacitive touch sensing peripherals, such as the CapSense block, and follow the guidelines in the datasheet and application notes for implementing capacitive touch sensing.
  • The CY8CMBR3116-LQXI has a typical active mode current consumption of 10mA at 1.8V, and a typical sleep mode current consumption of 1.5mA at 1.8V, but actual power consumption may vary depending on the specific application and usage.
