CY8CPLC20-48LTXI - Infineon

Description: Cypress Semiconductor CY8CPLC20-48LTXI, Microprocessor CY8CPLC20 48-Pin QFN

Download CY8CPLC20-48LTXI Model

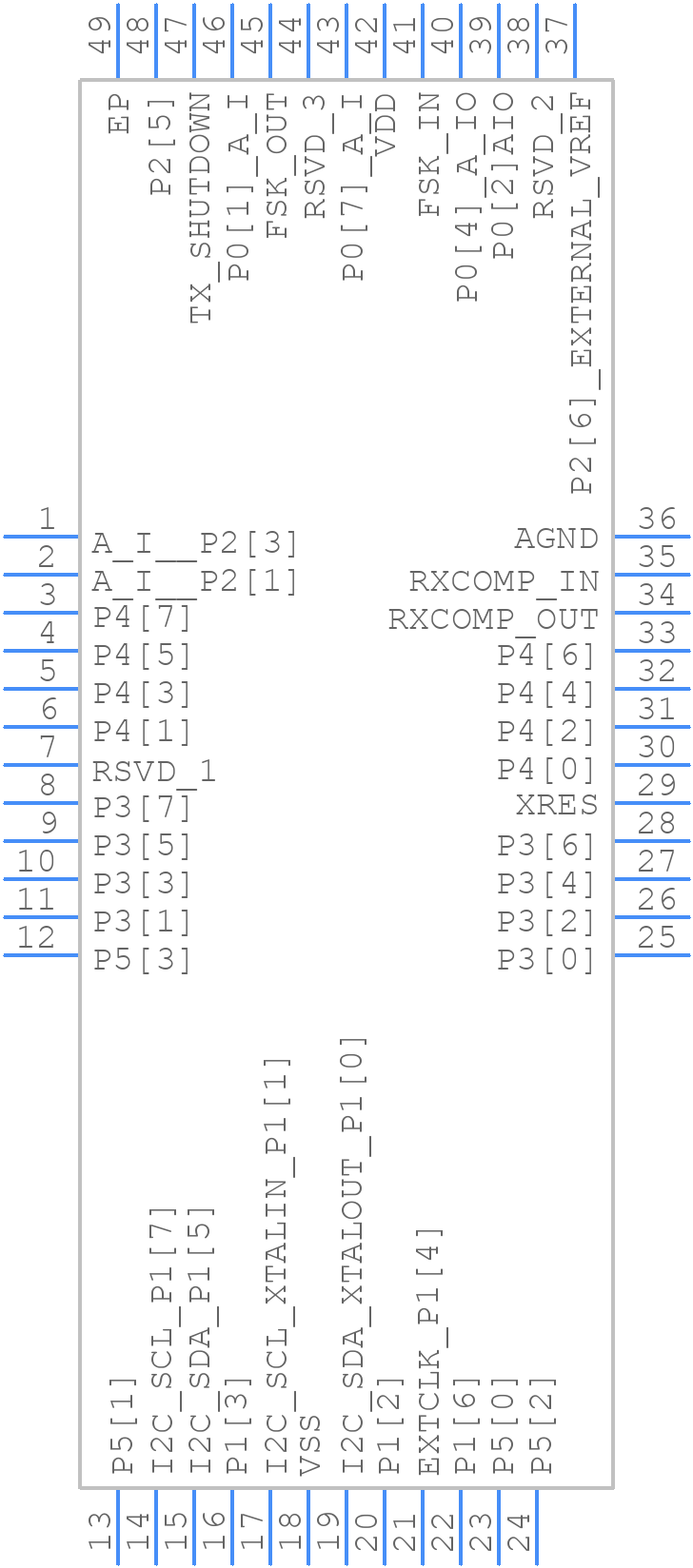

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CY8CPLC20-48LTXI - Infineon PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 48-Pin QFN
click to zoom
3D Models
CY8CPLC20-48LTXI - Infineon  - 3D model - Quad Flat No-Lead - 48-Pin QFN
click to zoom

CY8CPLC20-48LTXI Details

  • Manufacturer Part Number:

    CY8CPLC20-48LTXI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    10

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    14 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    20

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    PROGRAMMABLE SoC

CY8CPLC20-48LTXI Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for CY8CPLC20-48LTXI is 2.4V to 5.25V.
  • The clock source for CY8CPLC20-48LTXI can be configured using the Clock Control Register (CLK_CR). You can choose between internal oscillator, external clock, or PLL clock source.
  • The maximum frequency of the CPU clock for CY8CPLC20-48LTXI is 48 MHz.
  • CY8CPLC20-48LTXI has several low-power modes, including Sleep, Hibernate, and Stop modes. These modes can be implemented using the Power Mode Control Register (PMCR) and the Sleep Timer Register (STMR).
  • The maximum current consumption of CY8CPLC20-48LTXI is approximately 25 mA at 48 MHz CPU clock frequency and 3.3V supply voltage.
