CY91F579CHSPMC1-GSE1 - Infineon

CY91F579CHSPMC1-GSE1 Details

• Manufacturer Part Number:

  CY91F579CHSPMC1-GSE1

• Part Life Cycle Code:

  Obsolete

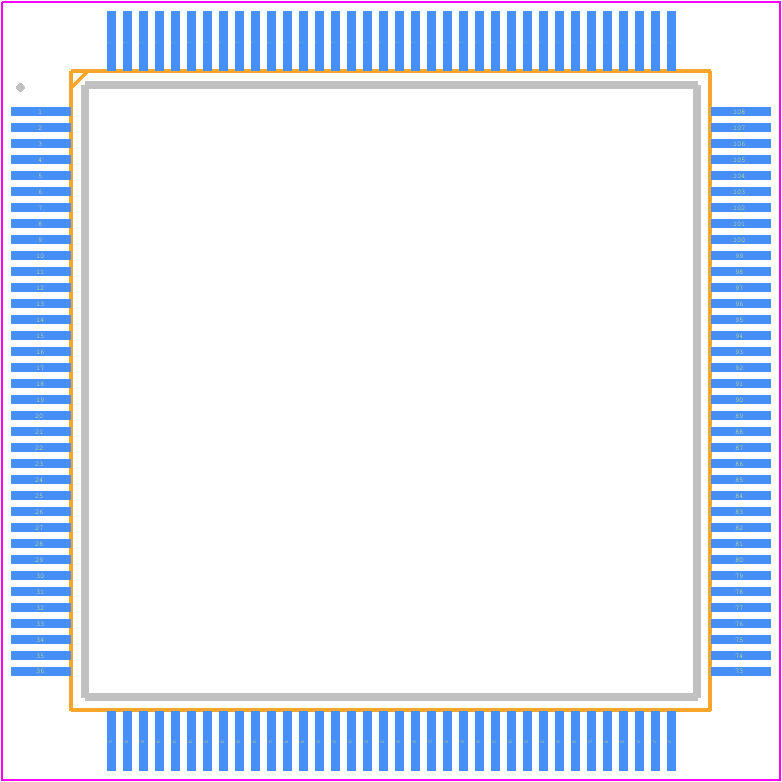

• Package Description:

  LQFP-144

• HTS Code:

  8542.31.00.30

• Factory Lead Time:

  4 Weeks

• Manufacturer:

  Infineon Technologies AG

• YTEOL:

  0

• Has ADC:

  YES

• Address Bus Width:

  22

• Bit Size:

  32

• Boundary Scan:

  NO

• CPU Family:

  FR81S

• Clock Frequency-Max:

  4 MHz

• DAC Channels:

  YES

• DMA Channels:

  YES

• External Data Bus Width:

  16

• Format:

  FLOATING POINT

• Integrated Cache:

  NO

• JESD-30 Code:

  S-PQFP-G144

• Length:

  16 mm

• Low Power Mode:

  YES

• Number of DMA Channels:

  16

• Number of External Interrupts:

  16

• Number of I/O Lines:

  111

• Number of Serial I/Os:

  8

• Number of Terminals:

  144

• Number of Timers:

  41

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFQFP

• Package Equivalence Code:

  QFP144,.7SQ,16

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, LOW PROFILE, FINE PITCH

• RAM (bytes):

  147456

• ROM (words):

  2097152

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1.7 mm

• Speed:

  80 MHz

• Supply Current-Max:

  140 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.4 mm

• Terminal Position:

  QUAD

• Width:

  16 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
