CYBT-343151-02 - Infineon

Description: Bluetooth Modules (802.15.1) BLE 5.0 Module CYW20706

Download CYBT-343151-02 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

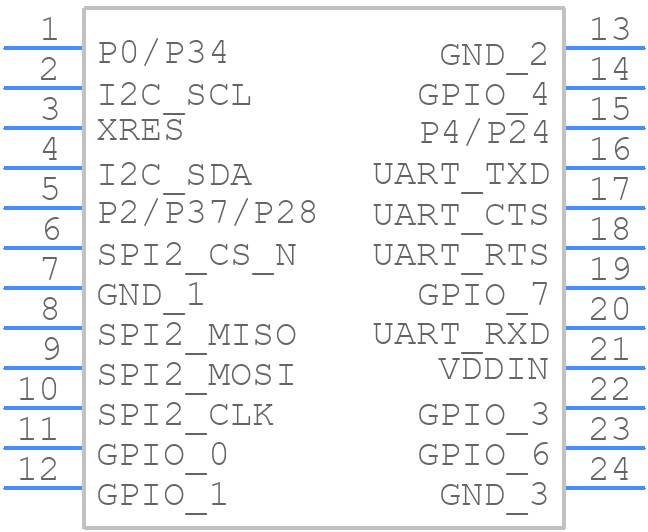

CYBT-343151-02 - Infineon - PCB symbol
click to zoom
PCB Footprints

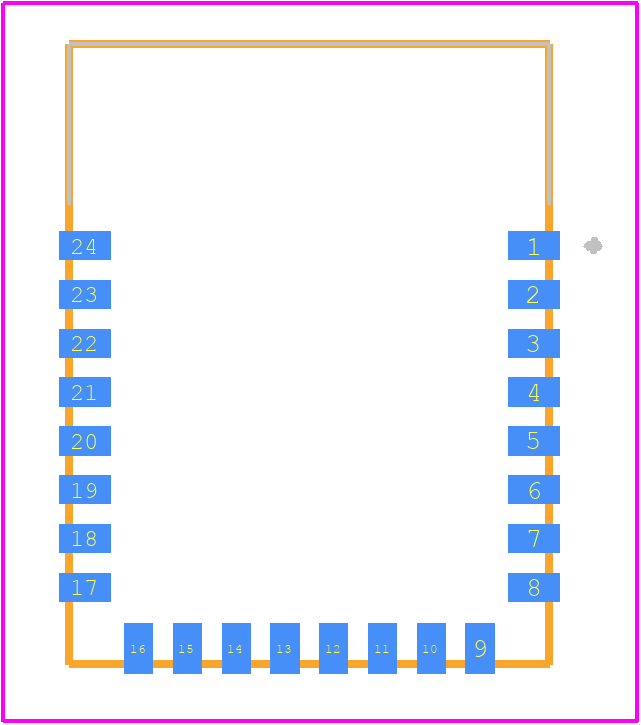

CYBT-343151-02 - Infineon PCB footprint - Other - Other - CYBT-343026-01-3
click to zoom
3D Models
CYBT-343151-02 - Infineon - 3D model - Other - CYBT-343026-01-3
click to zoom

CYBT-343151-02 Details

  • Manufacturer Part Number:

    CYBT-343151-02

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MODULE-24

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    29 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5

  • JESD-30 Code:

    R-XXMA-N24

  • Length:

    15.5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    1.95 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.22 mm

  • Terminal Position:

    UNSPECIFIED

  • Width:

    12 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

CYBT-343151-02 Frequently Asked Questions (FAQs)

  • Infineon provides a reference design guide (RDG) that includes PCB layout recommendations, component placement, and thermal management considerations to ensure optimal performance and minimize electromagnetic interference (EMI).
  • Infineon provides a Secure Boot and Firmware Update Guide that outlines the process for implementing secure boot and firmware updates using the CYBT-343151-02's built-in security features and the ModusToolbox software.
  • The CYBT-343151-02 has a typical power consumption of 4.5mA in RX mode and 3.5mA in TX mode. The module's thermal characteristics are specified in the datasheet, with a maximum operating temperature of 85°C and a storage temperature range of -40°C to 125°C.
  • The CYBT-343151-02 is designed specifically for Bluetooth 5.0 applications, but it can be used with other wireless protocols such as Bluetooth mesh, Thread, and Zigbee with the use of additional software stacks and firmware modifications.
  • The CYBT-343151-02 has a range of up to 400 meters (line of sight) and a throughput of up to 2 Mbps, depending on the environment and antenna design.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CYBT-343151-02 Overview

Use the download button to access the CYBT-343151-02 schematic symbol, PCB footprint, and 3D model.
