The recommended operating temperature range for CYBT-423054-02 is -40°C to +85°C, as specified in the datasheet. However, it's essential to note that the device can tolerate a wider temperature range during storage, which is -40°C to +125°C.
To configure the CYBT-423054-02 for BLE applications, you need to use the Infineon ModusToolbox software, which provides a GUI-based interface for configuring the device. You'll need to create a project, select the CYBT-423054-02 as the target device, and then configure the BLE settings according to your application requirements.
The maximum transmit power of the CYBT-423054-02 is +5 dBm, which is a relatively low power consumption compared to other Bluetooth modules. This low power consumption makes the device suitable for battery-powered applications.
Yes, you can use the CYBT-423054-02 with a non-Infineon microcontroller. The device is designed to be compatible with a wide range of microcontrollers, and Infineon provides a software development kit (SDK) that supports various MCU platforms. However, you may need to develop custom drivers or firmware to interface with the CYBT-423054-02.
Firmware updates on the CYBT-423054-02 can be performed using the Infineon ModusToolbox software. You'll need to create a firmware update project, select the target device, and then upload the new firmware to the device using a serial interface such as UART or SPI.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CYBT-423054-02 Overview

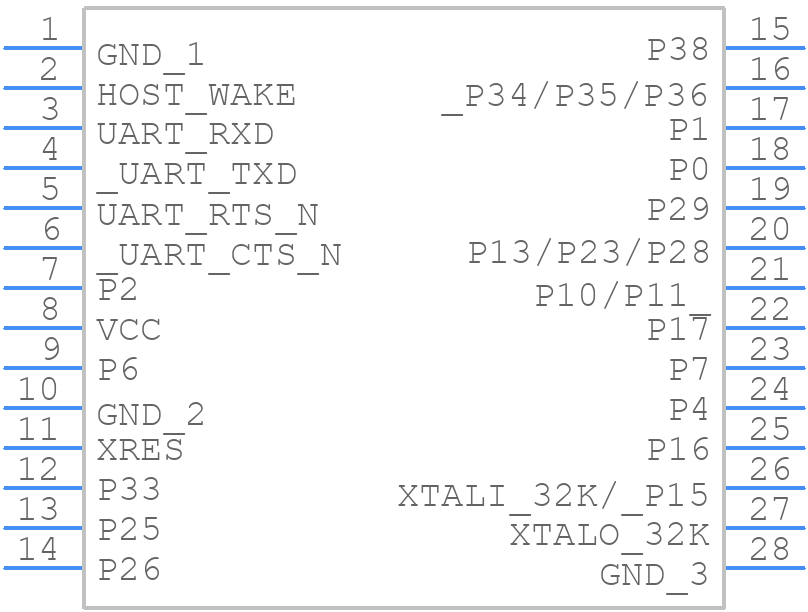

Use the download button to access the CYBT-423054-02 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CYBT-,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
