Infineon provides a recommended PCB layout guide in their application note AN2151, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The CYPD2104-20FNXIT is a programmable device, and configuration for USB-C PD applications requires setting the device's registers using the I2C interface. Infineon provides a software development kit (SDK) and a configuration tool to simplify the process. Refer to the CYPD2104-20FNXIT programming guide and the SDK documentation for more information.
The CYPD2104-20FNXIT has an operating temperature range of -40°C to +105°C, as specified in the datasheet. However, it's essential to consider the thermal management of the device, especially in high-power applications, to ensure reliable operation within the specified temperature range.
While the CYPD2104-20FNXIT is primarily designed for USB-C applications, it can be used for other USB applications with some modifications. However, this may require additional external components and custom firmware development. It's recommended to consult with Infineon's technical support or a qualified engineer to determine the feasibility of using the CYPD2104-20FNXIT for non-USB-C applications.
Infineon provides a range of debugging tools and resources, including a debug adapter, software development kits, and application notes. It's recommended to consult the CYPD2104-20FNXIT datasheet, user manuals, and Infineon's technical support resources for troubleshooting guidance. Additionally, analyzing the device's registers and communication protocols can help identify the root cause of issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CYPD2104-20FNXIT Overview

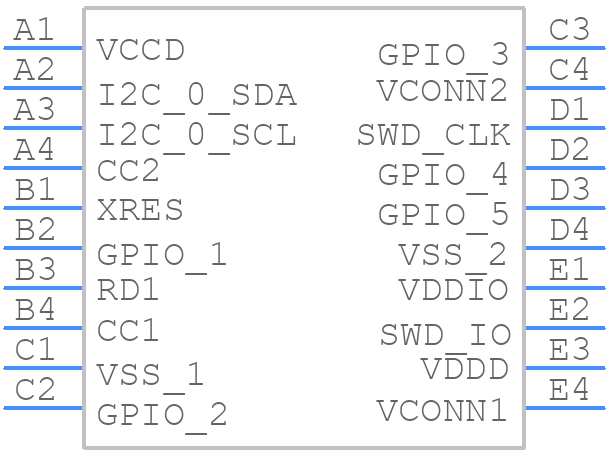

Use the download button to access the CYPD2104-20FNXIT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CYPD2,
or try a keyword search, such as Microprocessor Chipsets
