- Part Number CYPD2119-24LQXIT
- Manufacturer Infineon
- Pin Count 25
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - 24-pin QFN 1
- Released Date Sep 5, 2021
- Last Modified Date Jan 25, 2024 9:25 PM UTC
- Pinout / Pin List Click Here (Member Only)
CYPD2119-24LQXIT Details
-
Manufacturer Part Number:
CYPD2119-24LQXIT
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Not Recommended
-
Package Description:
QFN-24
-
ECCN Code:
3A991.a.2
-
HTS Code:
8542.31.00.30
-
Factory Lead Time:
4 Weeks
-
Manufacturer:
Infineon Technologies AG
-
YTEOL:
3
-
Bus Compatibility:
I2C, SPI, UART, USB
-
Clock Frequency-Max:
48 MHz
CYPD2119-24LQXIT Frequently Asked Questions (FAQs)
-
Infineon provides a recommended PCB layout guide in the application note AN2151, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
-
The CYPD2119-24LQXIT is a programmable device, and configuration for USB-C PD applications requires programming the device using the Infineon-provided software tools, such as the CYPD2119 Configuration Tool. The tool allows setting of various parameters, including PD profiles, voltage and current limits, and fault detection thresholds.
-
The CYPD2119-24LQXIT has an operating temperature range of -40°C to +105°C, as specified in the datasheet. However, it's essential to ensure proper thermal management and design considerations to maintain the device within the recommended operating temperature range for reliable operation.
-
While the CYPD2119-24LQXIT is primarily designed for USB-C applications, it can be used for other USB applications, such as USB-A or USB-B, with some limitations. However, it's essential to consult with Infineon's technical support or application notes to ensure the device can meet the specific requirements of the target application.
-
Infineon provides various resources for troubleshooting, including application notes, FAQs, and technical support. Engineers can also use the CYPD2119-24LQXIT's built-in debug features, such as the debug interface, to diagnose and resolve issues. Additionally, Infineon's software tools, such as the CYPD2119 Configuration Tool, can help identify and resolve configuration-related issues.
Trust Checks
Community Provided
System Verified
Community Approved
CYPD2119-24LQXIT Overview

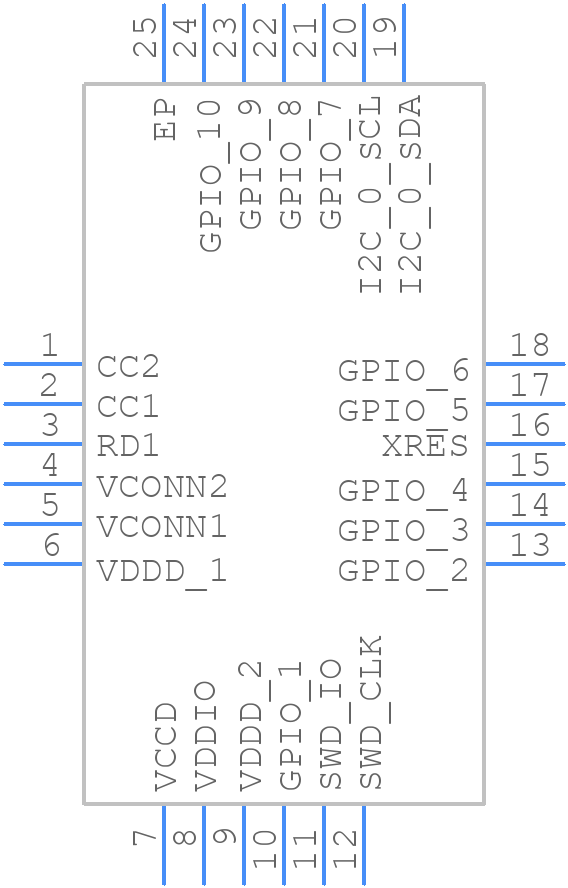

Use the download button to access the CYPD2119-24LQXIT schematic symbol, PCB footprint, and 3D model.
