Infineon provides a recommended PCB layout guide in their application note AN2151, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The CYPD2122-24LQXI is a programmable device, and configuration for USB-C PD applications requires programming the device using Infineon's Cypress USB-C PD Configuration Tool. The tool provides a graphical user interface to configure the device for various PD profiles and alternate modes.
The CYPD2122-24LQXI has an operating temperature range of -40°C to +105°C, as specified in the datasheet. However, it's essential to consider the thermal management of the device and the overall system design to ensure reliable operation within this temperature range.
While the CYPD2122-24LQXI is primarily designed for USB-C applications, it can be used for non-USB-C applications with some limitations. However, it's essential to consult with Infineon's technical support team to determine the feasibility and any necessary modifications to the device configuration and system design.
Infineon provides a range of debugging tools and resources, including the Cypress USB-C PD Debug Tool, which allows engineers to monitor and debug the device's behavior. Additionally, Infineon's technical support team can provide guidance and support to help troubleshoot issues with the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CYPD2122-24LQXI Overview

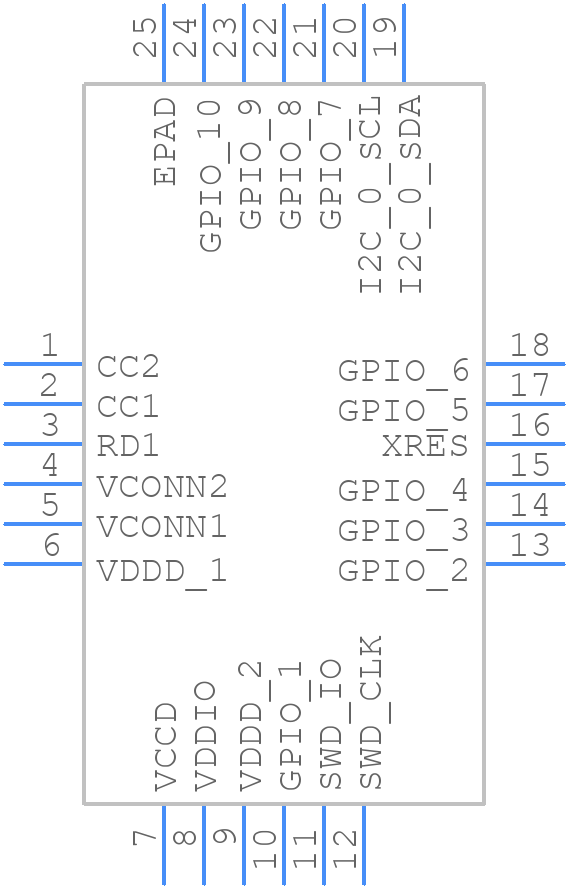

Use the download button to access the CYPD2122-24LQXI schematic symbol, PCB footprint, and 3D model.
