- Stock & Prices $ Price & Stock for CYPD3120-40LQXI
- Part Number CYPD3120-40LQXI
- Manufacturer Infineon
- Pin Count 41
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - CYPD3120-40LQXI-1
- Released Date Nov 12, 2018
- Last Modified Date Jan 25, 2024 9:25 PM UTC
- Pinout / Pin List Click Here (Member Only)
CYPD3120-40LQXI Details
-
Manufacturer Part Number:
CYPD3120-40LQXI
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
HTS Code:
8542.31.00.30
-
Manufacturer:
Infineon Technologies AG
-
YTEOL:
6
-
uPs/uCs/Peripheral ICs Type:
BUS CONTROLLER, UNIVERSAL SERIAL BUS
CYPD3120-40LQXI Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the high-frequency signals away from the power plane and use a common mode filter to reduce EMI.
-
Use a heat sink or thermal pad to dissipate heat, and ensure good airflow around the device. Also, consider using a thermal interface material to improve heat transfer.
-
The maximum cable length depends on the specific application and the type of cable used. As a general guideline, the CYPD3120-40LQXI supports cable lengths up to 3 meters for USB 2.0 and 1 meter for USB 3.2 Gen 1.
-
Use the I2C interface to configure the device for Alternate Modes. Set the CC pin to the desired mode (e.g., USB, DisplayPort, or Power Delivery) and configure the device using the I2C registers.
-
The power consumption of the CYPD3120-40LQXI varies depending on the operating mode. In low-power mode, the device consumes around 10mA, while in high-power mode, it consumes up to 500mA.
Trust Checks
Community Provided
System Verified
Community Approved
CYPD3120-40LQXI Overview

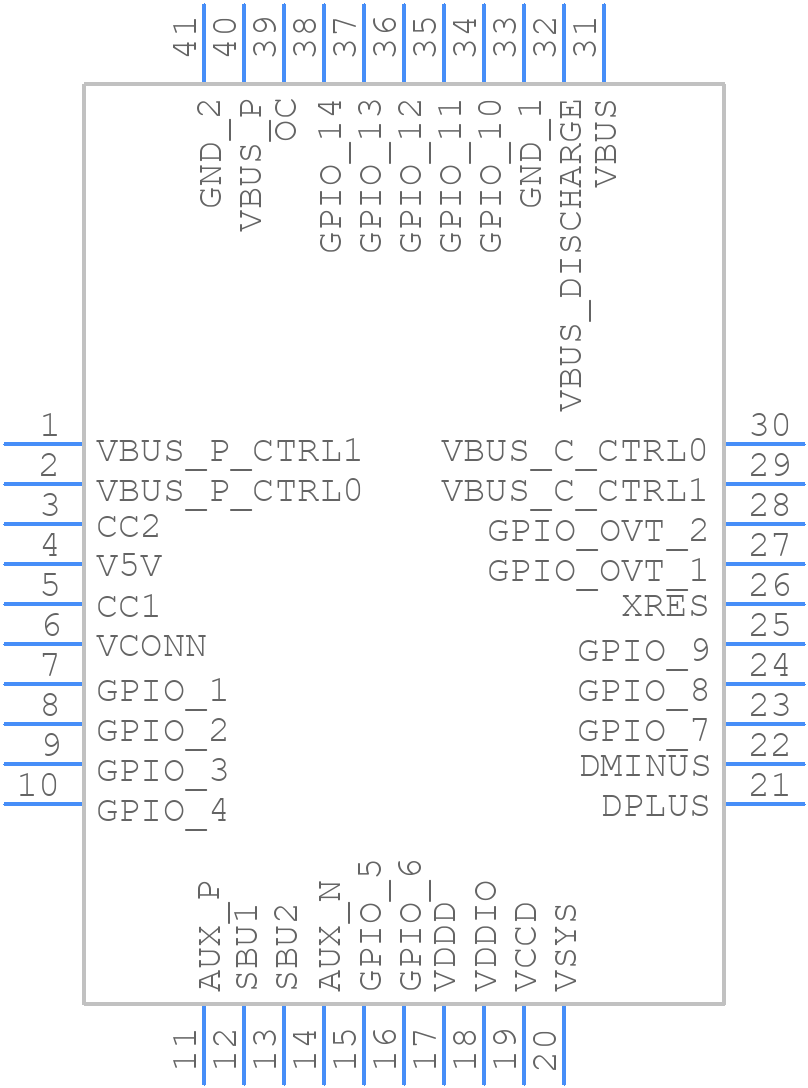

Use the download button to access the CYPD3120-40LQXI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CYPD3,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
