- Part Number CYPD3120-40LQXIT
- Manufacturer Infineon
- Pin Count 41
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - 40-QFN
- Released Date Nov 23, 2021
- Last Modified Date Jan 25, 2024 9:25 PM UTC
- Pinout / Pin List Click Here (Member Only)
CYPD3120-40LQXIT Details
-
Manufacturer Part Number:
CYPD3120-40LQXIT
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
HTS Code:
8542.31.00.30
-
Manufacturer:
Infineon Technologies AG
-
YTEOL:
6
CYPD3120-40LQXIT Frequently Asked Questions (FAQs)
-
Infineon provides a recommended PCB layout guide in the application note AN2151, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
-
The CYPD3120 can be configured for USB-C PD applications using the Infineon Power Delivery Configuration Tool, which allows users to generate configuration files and firmware for specific PD applications. The tool is available on the Infineon website.
-
The CYPD3120 has an operating temperature range of -40°C to +105°C, making it suitable for use in a wide range of applications, including industrial and automotive systems.
-
The CYPD3120 has built-in OVP and OCP features that can be enabled through configuration registers. The device also provides an interrupt signal to the system controller in case of an overvoltage or overcurrent event, allowing for quick response and protection of the system.
-
Yes, the CYPD3120 is a versatile power management IC that can be used in a variety of applications beyond USB-C, including battery charging, power management, and power conversion. The device's flexibility and configurability make it suitable for a wide range of applications.
Trust Checks
Community Provided
System Verified
Community Approved
CYPD3120-40LQXIT Overview

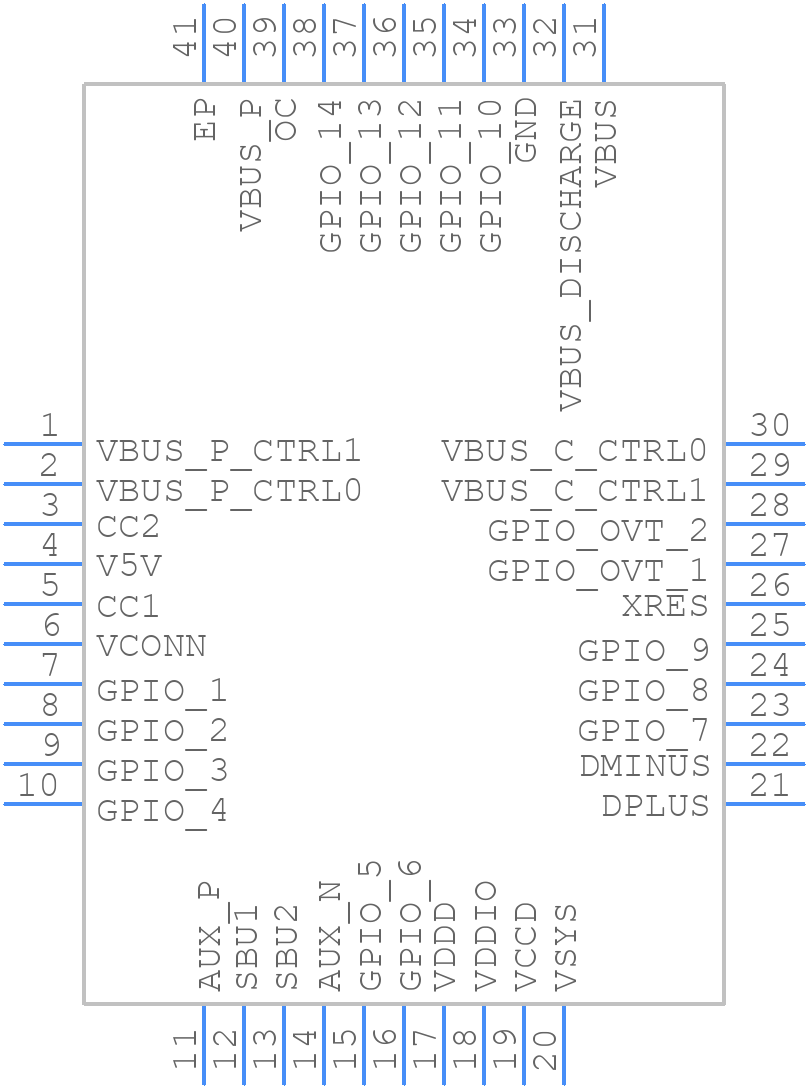

Use the download button to access the CYPD3120-40LQXIT schematic symbol, PCB footprint, and 3D model.
