- Part Number CYPD3123-40LQXIT
- Manufacturer Infineon
- Pin Count 41
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - 40-Pin QFN (6 × 6 × 0.6 mm)
- Released Date Jul 3, 2023
- Last Modified Date Jan 25, 2024 9:25 PM UTC
- Pinout / Pin List Click Here (Member Only)
CYPD3123-40LQXIT Details
-
Manufacturer Part Number:
CYPD3123-40LQXIT
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
HTS Code:
8542.31.00.30
-
Manufacturer:
Infineon Technologies AG
-
YTEOL:
6
-
uPs/uCs/Peripheral ICs Type:
BUS CONTROLLER, UNIVERSAL SERIAL BUS
CYPD3123-40LQXIT Frequently Asked Questions (FAQs)
-
Infineon provides a recommended PCB layout guide in their application note AN2151, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
-
The CYPD3123-40LQXIT is a programmable device, and configuration for USB-C PD applications requires setting up the device's registers and firmware. Infineon provides a software development kit (SDK) and documentation to help with configuration and customization for specific use cases.
-
The CYPD3123-40LQXIT has an operating temperature range of -40°C to +105°C, as specified in the datasheet. However, it's essential to consider the thermal management of the device and the overall system design to ensure reliable operation within this range.
-
While the CYPD3123-40LQXIT is primarily designed for USB-C applications, it can be used for other USB applications with some modifications. However, this may require additional components and custom firmware development. It's recommended to consult with Infineon's technical support or a qualified engineer to determine the feasibility of using the device for non-USB-C applications.
-
Infineon provides a range of tools and resources to help troubleshoot issues with the CYPD3123-40LQXIT, including debug software, technical documentation, and application notes. Additionally, engineers can consult with Infineon's technical support team or online forums for assistance with troubleshooting and resolving issues.
Trust Checks
Community Provided
System Verified
Community Approved
CYPD3123-40LQXIT Overview

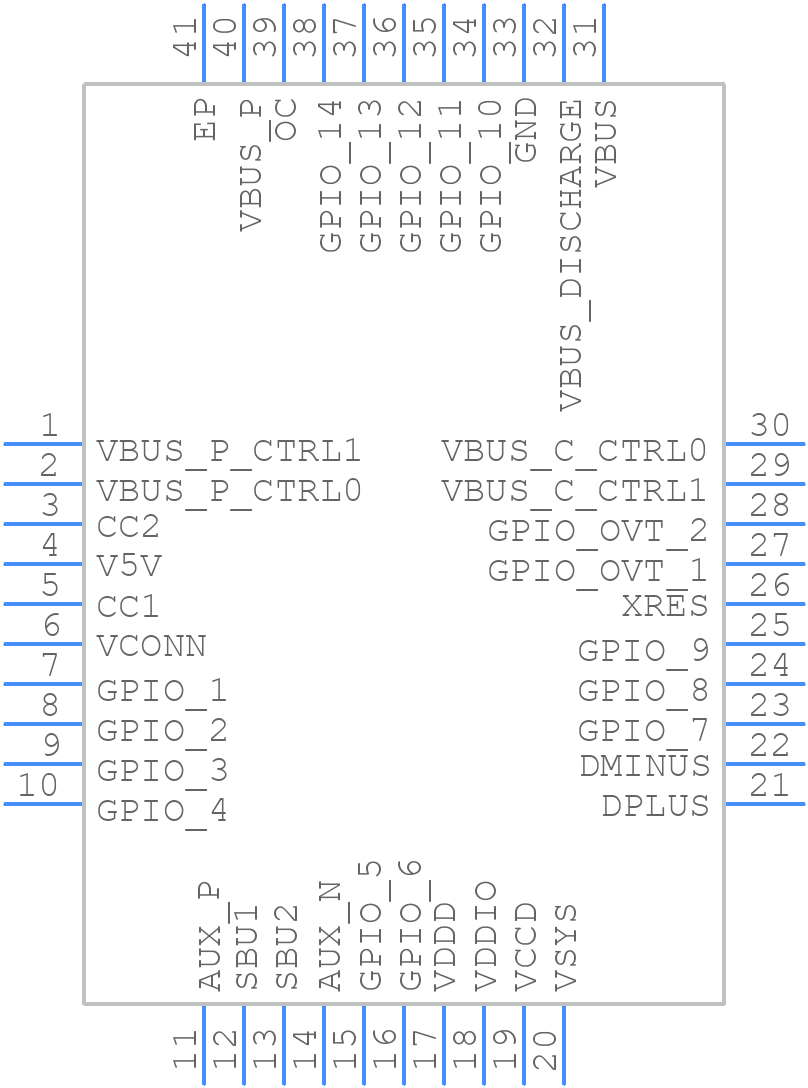

Use the download button to access the CYPD3123-40LQXIT schematic symbol, PCB footprint, and 3D model.
