Infineon provides a recommended PCB layout guide in the application note AN2151, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The CYPD3135 can be configured for USB-C PD applications using the Infineon's Power Delivery Configuration Tool, which allows users to generate configuration files for the device. The tool provides a graphical user interface to select the desired PD profiles, Alternate Modes, and other settings.
The CYPD3135 has an operating temperature range of -40°C to +105°C, making it suitable for use in a wide range of applications, including industrial and automotive systems.
The CYPD3135 has built-in OVP and OCP features that can be enabled through configuration registers. The device can detect overvoltage and overcurrent conditions and respond by shutting down the power path or sending an alert to the system controller.
Yes, the CYPD3135 is a versatile power management IC that can be used in a variety of non-USB applications, including DC power supplies, battery chargers, and other power management systems. The device's flexibility and configurability make it suitable for a wide range of applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CYPD3135-40LQXIT Overview

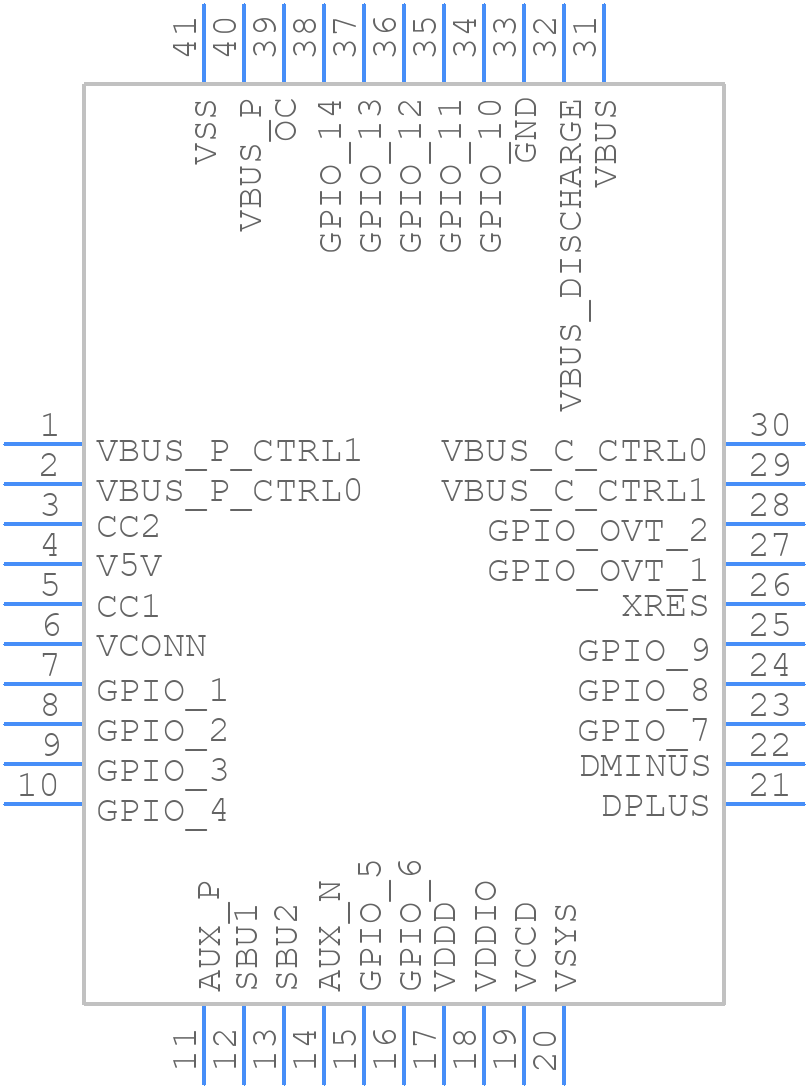

Use the download button to access the CYPD3135-40LQXIT schematic symbol, PCB footprint, and 3D model.
