CYPD3175-24LQXQ footprint, schematic symbol and 3D model by Infineon

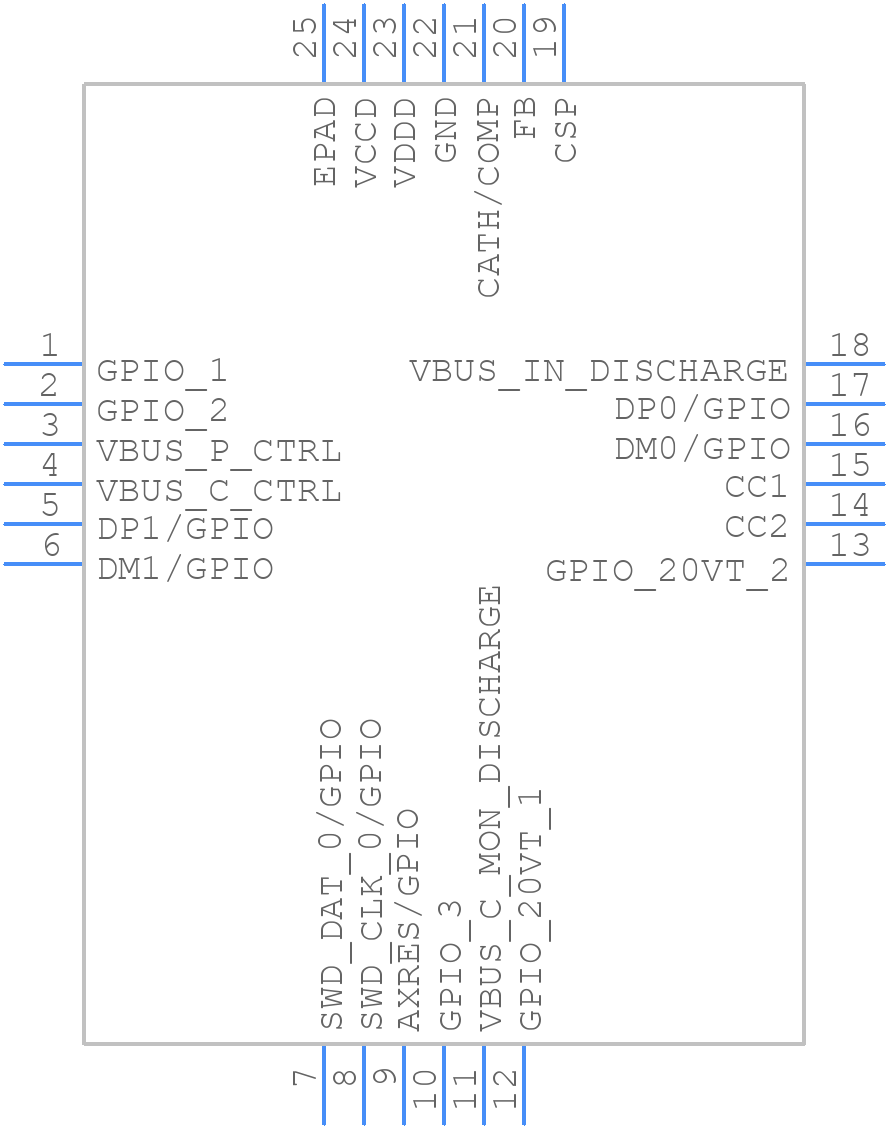

Symbol

PCB Footprints

3D Models

CYPD3175-24LQXQ Details

A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the high-frequency signals away from the power planes and use a common mode filter to reduce EMI.
Use a heat sink to dissipate heat, ensure good airflow, and consider using a thermal interface material to improve heat transfer. Also, follow the recommended operating conditions and derating guidelines.
Ensure a stable and regulated power supply with minimal ripple and noise. Use a low-ESR capacitor to filter the power supply, and consider using a voltage regulator with a low dropout voltage.
Use a logic analyzer or oscilloscope to monitor the signals, check the power supply and clock signals, and verify the firmware and software configuration. Consult the datasheet and application notes for troubleshooting guidelines.
The CYPD3175-24LQXQ has a higher operating frequency, lower power consumption, and additional features such as USB-C Power Delivery and USB 3.2 Gen 2 support. Consult the datasheet and product comparison tables for specific differences.

Community Provided

System Verified

Community Approved

Use the download button to access the CYPD3175-24LQXQ schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like CYPD3, or try a keyword search, such as Bus Controllers
