Infineon provides a recommended PCB layout guide in their application note AN2151, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The CYPD3196-24LDXST is a highly configurable device, and configuration is done through the I2C interface. Infineon provides a configuration tool, the CYPD316x Configuration Tool, which allows designers to easily configure the device for different USB-C applications. The tool provides a graphical user interface to set up the device's registers and configuration bits.
The maximum cable length supported by the CYPD3196-24LDXST depends on the specific USB-C application and the cable quality. In general, the device supports cable lengths up to 2 meters for USB 3.2 Gen 2 and up to 5 meters for USB 2.0. However, it's recommended to consult the USB-C specification and perform signal integrity analysis to ensure reliable operation over longer cable lengths.
The CYPD3196-24LDXST has built-in fault detection and protection mechanisms to handle overvoltage, overcurrent, and short-circuit conditions on the USB-C port. The device can detect faults and respond quickly to prevent damage to the system. It also provides fault reporting and notification to the system controller through the I2C interface.
Yes, the CYPD3196-24LDXST is designed to work with other USB-C controllers or hubs in a system. It supports multiple device interfaces, including I2C, SPI, and GPIO, which allows it to communicate with other controllers or hubs. Additionally, the device's configuration can be customized to work with specific system requirements and use cases.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CYPD3196-24LDXST Overview

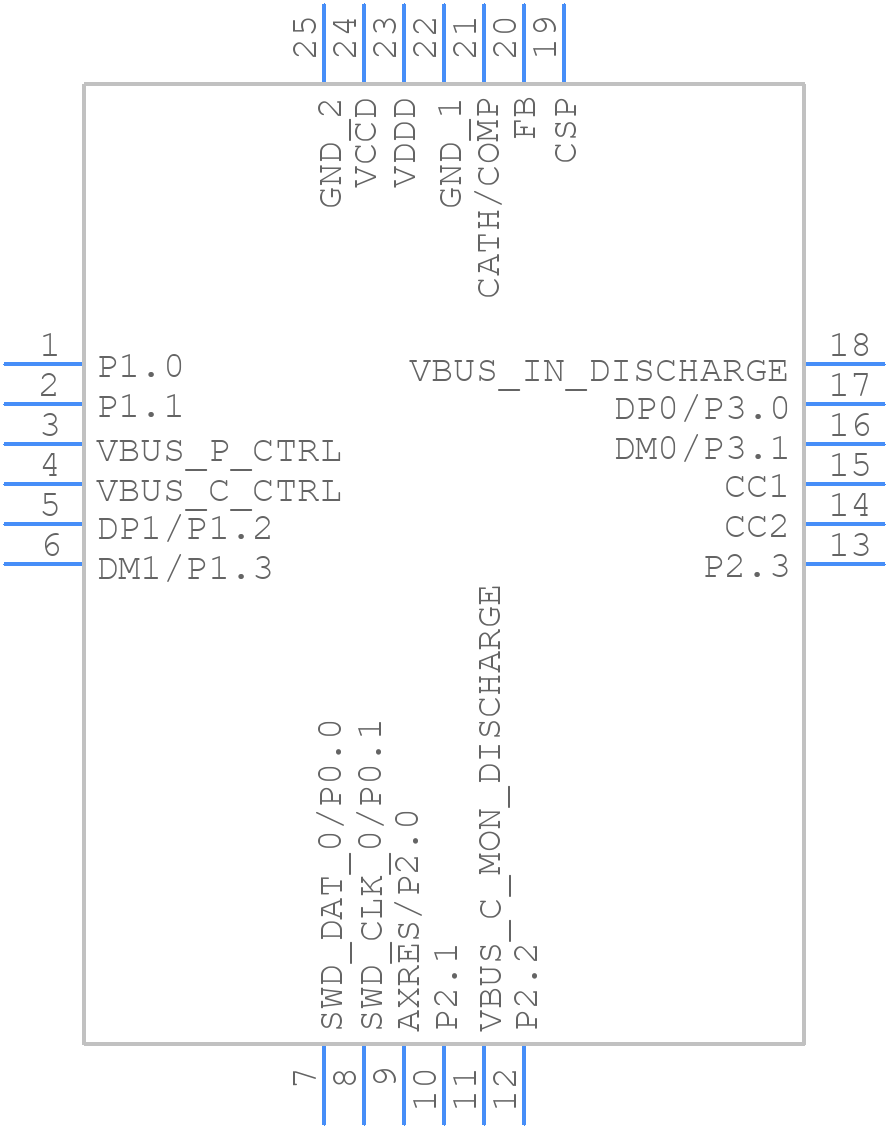

Use the download button to access the CYPD3196-24LDXST schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CYPD3,
or try a keyword search, such as Other Interface ICs
