- Part Number CYPD4126-40LQXIT
- Manufacturer Infineon
- Pin Count 41
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - 40-pin QFN
- Released Date Dec 4, 2023
- Last Modified Date Dec 4, 2023 3:29 AM UTC
- Pinout / Pin List Click Here (Member Only)
CYPD4126-40LQXIT Details
-
Manufacturer Part Number:
CYPD4126-40LQXIT
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
3A991.a.2
-
HTS Code:
8542.31.00.30
-
Manufacturer:
Infineon Technologies AG
-
YTEOL:
8.65
-
Bus Compatibility:
I2C, SPI, UART, USB
-
Clock Frequency-Max:
48 MHz
-
Data Transfer Rate-Max:
0.125 MBps
-
JESD-30 Code:
S-XQCC-N40
CYPD4126-40LQXIT Frequently Asked Questions (FAQs)
-
Infineon provides a recommended PCB layout guide in their application note AN2151, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
-
The CYPD4126-40LQXIT is a programmable device, and configuration for USB PD applications requires setting up the device's registers using the I2C interface. Infineon provides a software development kit (SDK) and a user manual that includes examples and guidelines for configuring the device for USB PD applications.
-
The CYPD4126-40LQXIT has an operating temperature range of -40°C to +105°C, as specified in the datasheet. However, it's essential to consider the device's thermal management and ensure that the junction temperature (Tj) does not exceed 125°C to ensure reliable operation and prevent damage.
-
Yes, the CYPD4126-40LQXIT is a versatile device that can be used for various power management and charging applications beyond USB PD. Its programmable nature and flexible architecture make it suitable for custom applications, but it's essential to consult with Infineon's technical support and review the device's specifications to ensure it meets the requirements of your specific application.
-
Infineon provides a range of tools and resources to help troubleshoot issues with the CYPD4126-40LQXIT, including a debug interface, software development kits, and application notes. It's recommended to consult the device's datasheet, user manual, and Infineon's technical support resources for guidance on troubleshooting and debugging.
Trust Checks
Community Provided
System Verified
Community Approved
CYPD4126-40LQXIT Overview

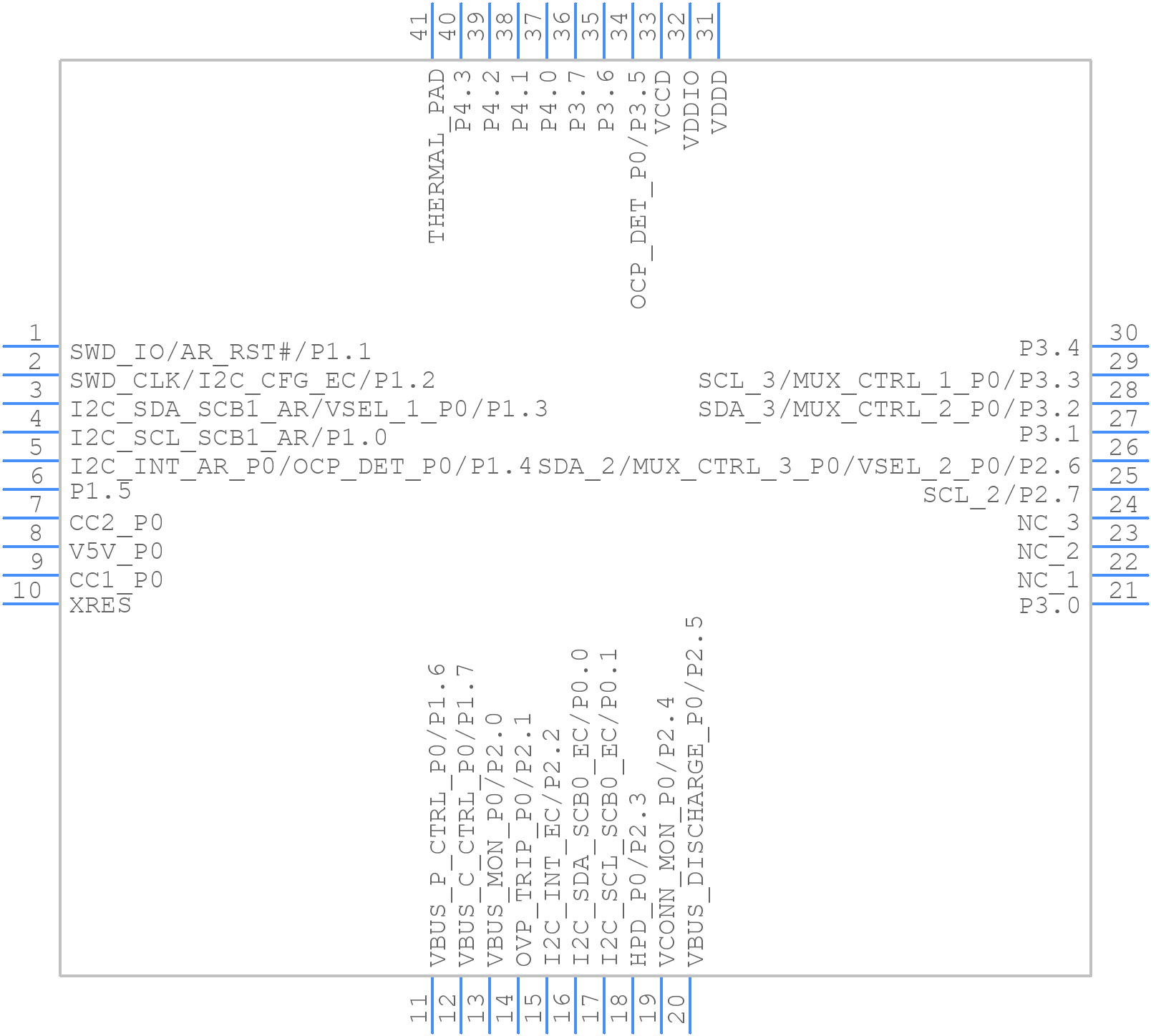

Use the download button to access the CYPD4126-40LQXIT schematic symbol, PCB footprint, and 3D model.
