CYPD5126-40LQXIT - Infineon

Description: IC MCD CCG5C WIRED 40-QFN

Download CYPD5126-40LQXIT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

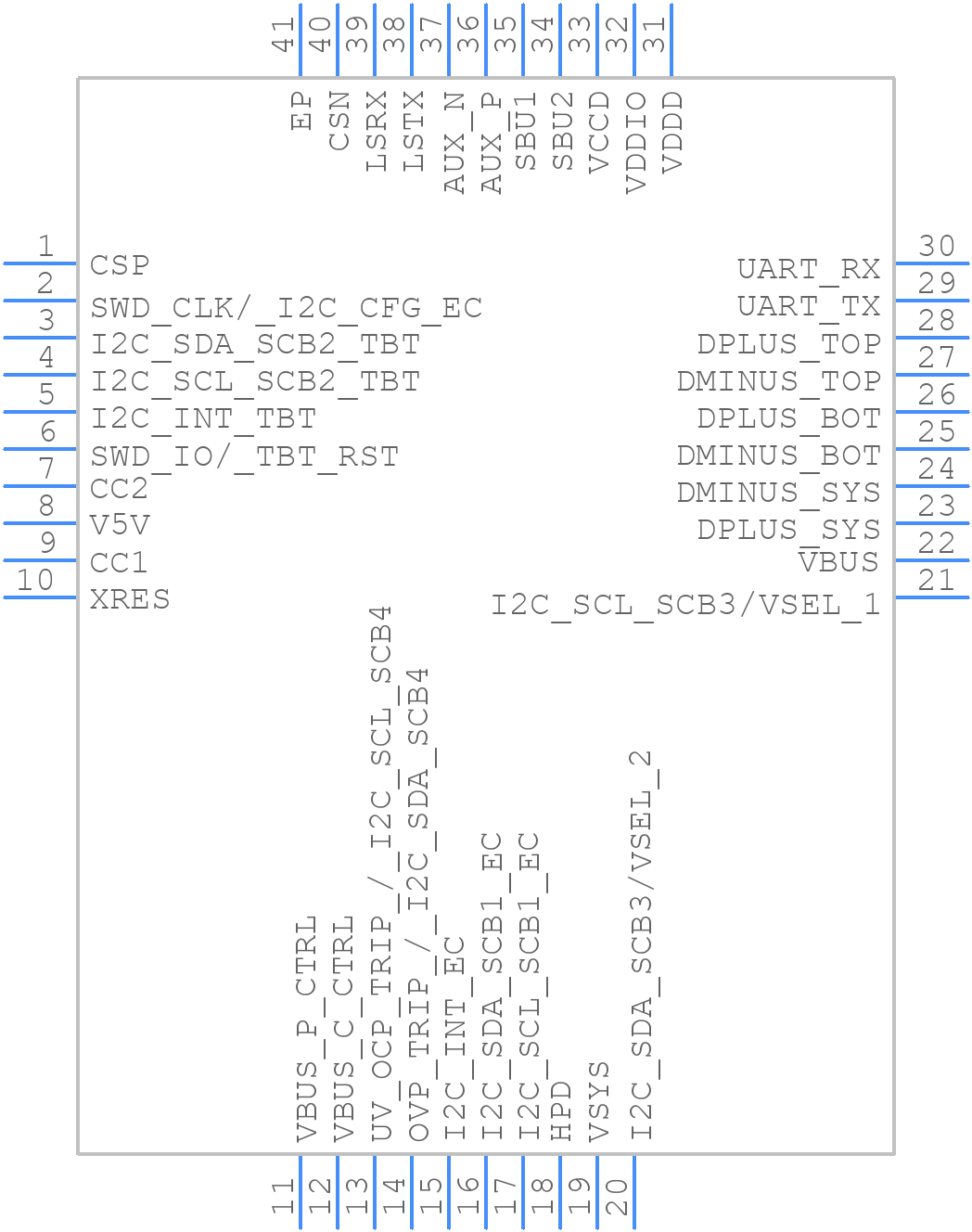

CYPD5126-40LQXIT - Infineon - PCB symbol
click to zoom
PCB Footprints
CYPD5126-40LQXIT - Infineon PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 40-pin QFN
click to zoom
3D Models
CYPD5126-40LQXIT - Infineon - 3D model - Quad Flat No-Lead - 40-pin QFN
click to zoom

CYPD5126-40LQXIT Details

  • Manufacturer Part Number:

    CYPD5126-40LQXIT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-40

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • JESD-30 Code:

    S-XQCC-N40

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.75 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

CYPD5126-40LQXIT Frequently Asked Questions (FAQs)

  • Infineon provides a recommended PCB layout guide in the application note AN2151, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The CYPD5126-40LQXIT is a programmable device, and configuration for USB PD applications requires setting up the device using the Infineon's EZ-PD™ Configuration Tool. The tool provides a graphical user interface to configure the device's registers and settings for specific PD applications.
  • The CYPD5126-40LQXIT has an operating temperature range of -40°C to +105°C, as specified in the datasheet. However, it's essential to consider the thermal management of the device and the overall system design to ensure reliable operation within this temperature range.
  • Yes, the CYPD5126-40LQXIT is a versatile device that can be used for various power management and charging applications beyond USB PD. Its programmable nature and range of features make it suitable for custom applications, but may require additional design and development efforts.
  • Infineon provides a range of resources for troubleshooting, including application notes, FAQs, and technical support. Engineers can also use tools like logic analyzers or oscilloscopes to debug the device's behavior and identify potential issues.
