Part Image

CYUSB3082FCAXIXQMA1 - Infineon

Description: USB Interface IC USB 3.2 Gen 1 device controllers for USB 5Gbps applications FBGA-169 5 Gb/s

Download CYUSB3082FCAXIXQMA1 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this CYUSB3082FCAXIXQMA1 model

Email notifications will be applied after download.

Send part feedback

Symbol

CYUSB3082FCAXIXQMA1 - Infineon - PCB symbol

PCB Footprints

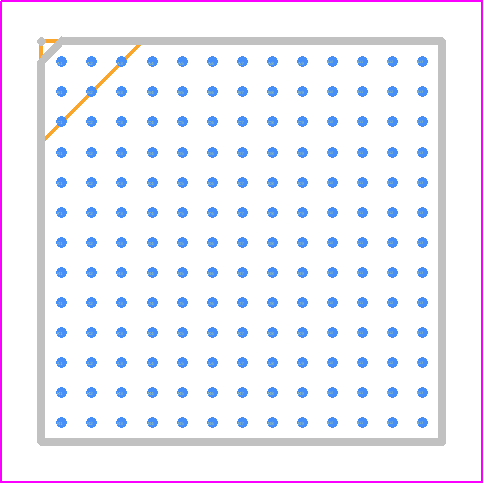

CYUSB3082FCAXIXQMA1 - Infineon PCB footprint - BGA - BGA - 169-ball FBGA (10 × 10 × 1.2 mm) FCA169

3D Models

CYUSB3082FCAXIXQMA1 - Infineon - 3D model - BGA - 169-ball FBGA (10 × 10 × 1.2 mm) FCA169

Datasheet Download Datasheet
Stock & Prices Price & Stock for CYUSB3082FCAXIXQMA1
Part Number CYUSB3082FCAXIXQMA1
Manufacturer Infineon
Pin Count 169
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - 169-ball FBGA (10 × 10 × 1.2 mm) FCA169
Released Date Sep 5, 2026
Last Modified Date Sep 5, 2026 7:04 AM UTC
Pinout / Pin List Click Here (Member Only)

CYUSB3082FCAXIXQMA1 Details

Manufacturer Part Number:
CYUSB3082FCAXIXQMA1
Manufacturer:
Infineon Technologies AG

Trust Checks

Community Provided

System Verified

Community Approved

CYUSB3082FCAXIXQMA1 Overview

Use the download button to access the CYUSB3082FCAXIXQMA1 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like CYUSB, or try a keyword search, such as Bus Controllers
