CYUSB3314-88LTXC - Infineon

Description: USB Interface IC HX3 USB 3.0 Hub 4 Ports 3V

Download CYUSB3314-88LTXC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CYUSB3314-88LTXC - Infineon - PCB symbol
click to zoom
PCB Footprints

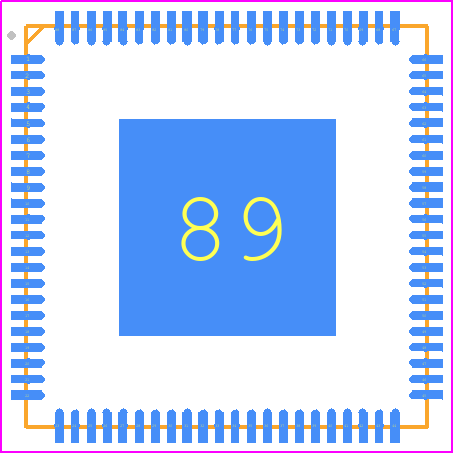

CYUSB3314-88LTXC - Infineon PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 88-pin QFN (10 × 10 × 1.0 mm) LT88B 5.3 × 5.3 EPAD (Sawn)
click to zoom
3D Models
CYUSB3314-88LTXC - Infineon - 3D model - Quad Flat No-Lead - 88-pin QFN (10 × 10 × 1.0 mm) LT88B 5.3 × 5.3 EPAD (Sawn)
click to zoom

CYUSB3314-88LTXC Details

  • Manufacturer Part Number:

    CYUSB3314-88LTXC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Bus Compatibility:

    I2C

  • Clock Frequency-Max:

    26 MHz

  • Data Transfer Rate-Max:

    625 MBps

  • JESD-30 Code:

    S-XQCC-N88

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    88

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    1.14 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Pure Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    10 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

CYUSB3314-88LTXC Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the CYUSB3314-88LTXC is -40°C to 85°C.
  • To configure the CYUSB3314-88LTXC for USB 3.0 mode, you need to set the MODE pin high and ensure that the VBUS pin is connected to a 5V power source. Additionally, you need to configure the device using the I2C interface to select the USB 3.0 mode.
  • The CYUSB3314-88LTXC supports a maximum data transfer rate of 5 Gbps in USB 3.0 mode.
  • To implement power management for the CYUSB3314-88LTXC, you can use the device's built-in power management features, such as the SUSPEND and RESUME signals, to control the power consumption of the device. Additionally, you can use external power management ICs to control the power supply to the device.
  • The CYUSB3314-88LTXC requires an external crystal oscillator with a frequency of 24 MHz and a load capacitance of 18 pF to 22 pF.
