Infineon provides a recommended PCB layout guide in the CYUSB3314-88LTXCT application note (AN214656) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The CYUSB3314-88LTXCT is configured for USB 3.2 Gen 2 operation by default. However, to ensure proper operation, the device requires a 100 MHz reference clock and a specific pin configuration. Refer to the datasheet and application note for detailed configuration and pinout information.
The CYUSB3314-88LTXCT supports cable lengths up to 3 meters for USB 3.2 Gen 2 operation, and up to 5 meters for USB 2.0 operation. However, the actual cable length may vary depending on the specific application and cable quality.
The CYUSB3314-88LTXCT has built-in power management features, including a low-power mode and a suspend mode. To implement power management, the device can be controlled through the I2C interface or through the use of external power management ICs. Refer to the datasheet and application note for detailed information on power management implementation.
The CYUSB3314-88LTXCT has a maximum junction temperature of 125°C. To ensure proper thermal management, the device requires a heat sink and proper airflow. The application note provides guidelines for thermal management, including thermal pad layout and heat sink design recommendations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CYUSB3314-88LTXCT Overview

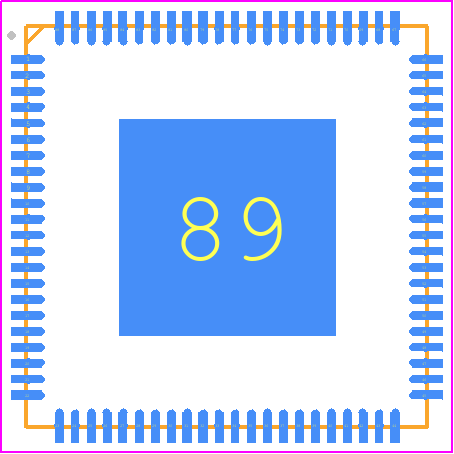

Use the download button to access the CYUSB3314-88LTXCT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CYUSB,
or try a keyword search, such as Bus Controllers
