The recommended operating temperature range for the CYUSB3328-88LTXC is -40°C to 85°C.
To configure the CYUSB3328-88LTXC for high-speed USB operation, you need to set the HS_EN pin high and ensure that the device is powered from a 3.3V supply. Additionally, you may need to adjust the transmission line impedance and termination to meet the high-speed USB signal integrity requirements.
No, the CYUSB3328-88LTXC is designed to operate from a 3.3V power supply. Using a 5V power supply may damage the device or affect its performance.
To implement USB suspend and resume functionality with the CYUSB3328-88LTXC, you need to connect the SUSPEND pin to a GPIO pin on your microcontroller and use the microcontroller to control the SUSPEND pin. When the SUSPEND pin is asserted, the CYUSB3328-88LTXC will enter a low-power state, and when it is de-asserted, the device will resume normal operation.
The maximum cable length supported by the CYUSB3328-88LTXC is 3 meters for high-speed USB operation. However, this can be extended to 5 meters or more by using active cables or repeaters.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CYUSB3328-88LTXC Overview

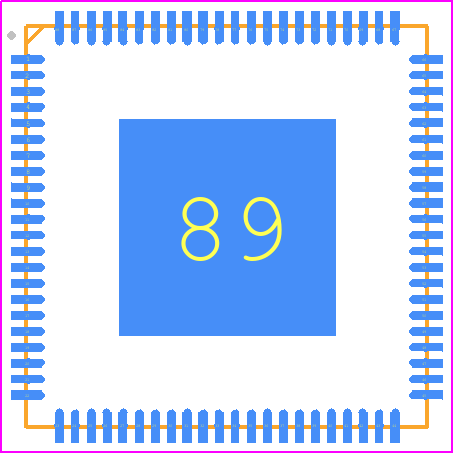

Use the download button to access the CYUSB3328-88LTXC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CYUSB,
or try a keyword search, such as Bus Controllers
