- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for CYUSB4347-BZXC
- Part Number CYUSB4347-BZXC
- Manufacturer Infineon
- Pin Count 192
- Part Category Integrated Circuit
- Package Category BGA

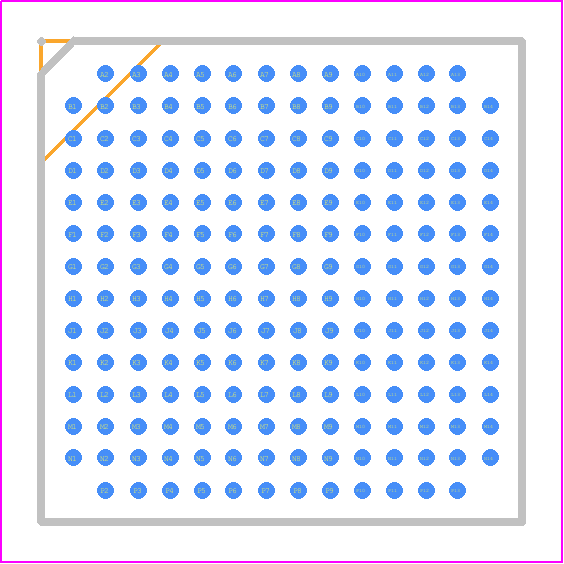

- Footprint Name BGA - 192-Ball FBGA
- Released Date Jan 13, 2021
- Last Modified Date Jan 25, 2024 9:25 PM UTC
- Pinout / Pin List Click Here (Member Only)
CYUSB4347-BZXC Details
-
Manufacturer Part Number:
CYUSB4347-BZXC
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Infineon Technologies AG
-
YTEOL:
1
-
Analog IC - Other Type:
USB PD CONTROLLER
-
Moisture Sensitivity Level:
3
-
Terminal Finish:
Tin/Silver/Copper (Sn/Ag/Cu)
CYUSB4347-BZXC Frequently Asked Questions (FAQs)
-
The recommended operating temperature range for the CYUSB4347-BZXC is -40°C to 85°C.
-
To configure the CYUSB4347-BZXC for optimal power consumption, use the lowest possible clock frequency, disable unnecessary peripherals, and use the power-saving modes (e.g., sleep mode) when the device is not in use.
-
The CYUSB4347-BZXC supports a maximum data transfer rate of 480 Mbps in USB 2.0 mode and 5 Gbps in USB 3.2 Gen 1 mode.
-
To implement USB device class drivers for the CYUSB4347-BZXC, use the Cypress EZ-USB FX3 SDK, which provides a set of APIs and example code for developing custom device class drivers.
-
For optimal performance and signal integrity, follow the recommended PCB layout guidelines provided in the CYUSB4347-BZXC datasheet, including using a 4-layer PCB, separating analog and digital signals, and minimizing signal trace lengths.
Trust Checks
Community Provided
System Verified
Community Approved
CYUSB4347-BZXC Overview
Use the download button to access the CYUSB4347-BZXC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CYUSB,
or try a keyword search, such as Bus Controllers
