CYW20706UA2KFFB4G - Infineon

Description: CYPRESS SEMICONDUCTOR - CYW20706UA2KFFB4G - RF TRANSCEIVER, 2.48GHZ, -30 TO 85DEG C

Download CYW20706UA2KFFB4G Model

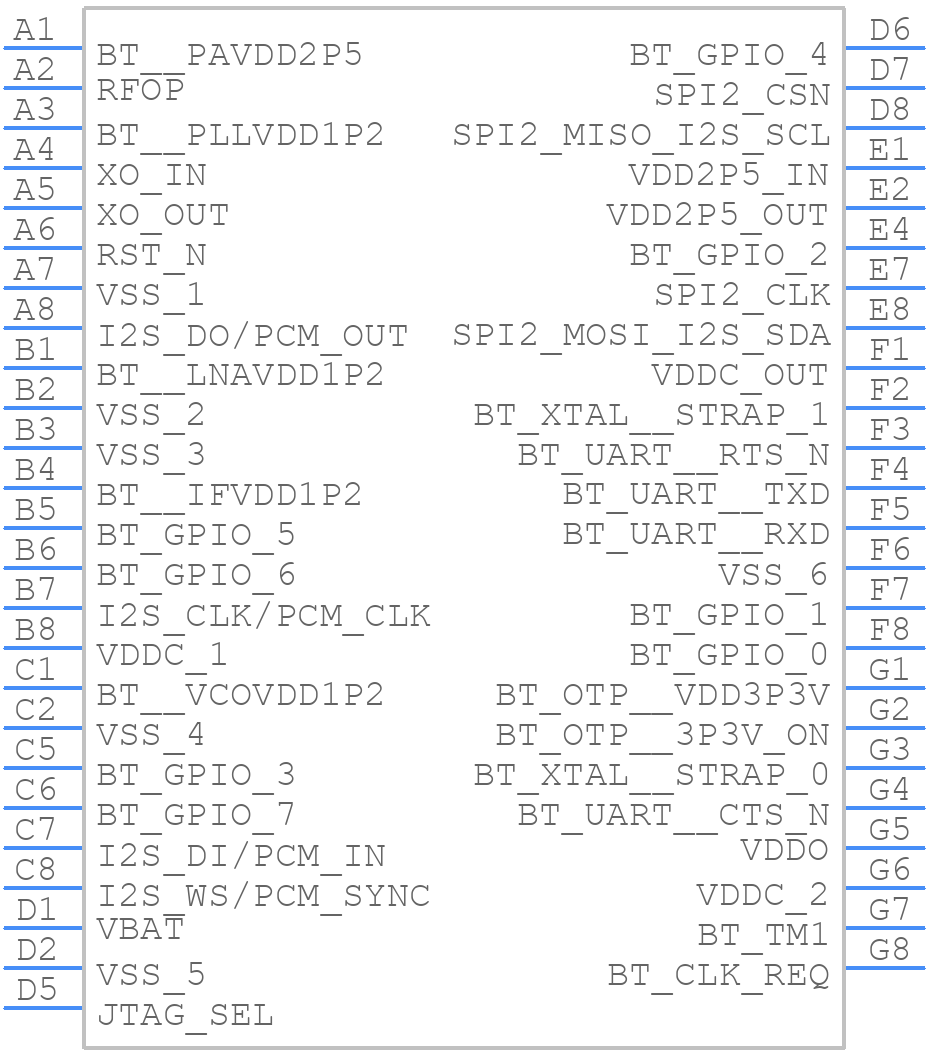

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CYW20706UA2KFFB4G - Infineon PCB footprint - BGA - BGA - CYW20706UA2KFFB4G
click to zoom
3D Models
CYW20706UA2KFFB4G - Infineon  - 3D model - BGA - CYW20706UA2KFFB4G
click to zoom

CYW20706UA2KFFB4G Details

  • Manufacturer Part Number:

    CYW20706UA2KFFB4G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Singapore

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    3

  • JESD-30 Code:

    R-PBGA-B49

  • JESD-609 Code:

    e1

  • Length:

    4.5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    49

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFBGA

  • Package Equivalence Code:

    BGA49,6X8,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    1.05 mm

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    1.14 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

CYW20706UA2KFFB4G Frequently Asked Questions (FAQs)

  • The recommended antenna design for the CYW20706UA2KFFB4G module is a 2.4 GHz monopole antenna with a length of around 15 mm to 20 mm. The antenna should be placed at least 10 mm away from the module's edges to ensure optimal performance.
  • To optimize the module's power consumption, ensure that the module is in sleep mode when not in use, use a low-power oscillator, and optimize the transmit power level. Additionally, consider using a power-saving mode like the 'Low Power Mode' or 'Deep Sleep Mode' provided by the module.
  • The maximum operating temperature range for the CYW20706UA2KFFB4G module is -40°C to +85°C. However, it's recommended to operate the module within a temperature range of 0°C to 70°C for optimal performance and reliability.
  • To ensure coexistence with other wireless technologies, implement a coexistence mechanism like Adaptive Frequency Hopping (AFH) or Dynamic Channel Switching (DCS). Additionally, consider using a wireless coexistence interface like the IEEE 802.15.2 coexistence interface.
  • The recommended PCB layout and design guidelines for the CYW20706UA2KFFB4G module include using a 4-layer PCB, keeping the module's RF traces as short as possible, and using a ground plane to reduce electromagnetic interference (EMI). Additionally, ensure that the module's power supply lines are decoupled and filtered properly.
