CYW20719B2KUMLG - Infineon

Description: IC RF TxRx + MCU Bluetooth Bluetooth v5.1 2.4GHz 40-UFQFN Exposed Pad

Download CYW20719B2KUMLG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

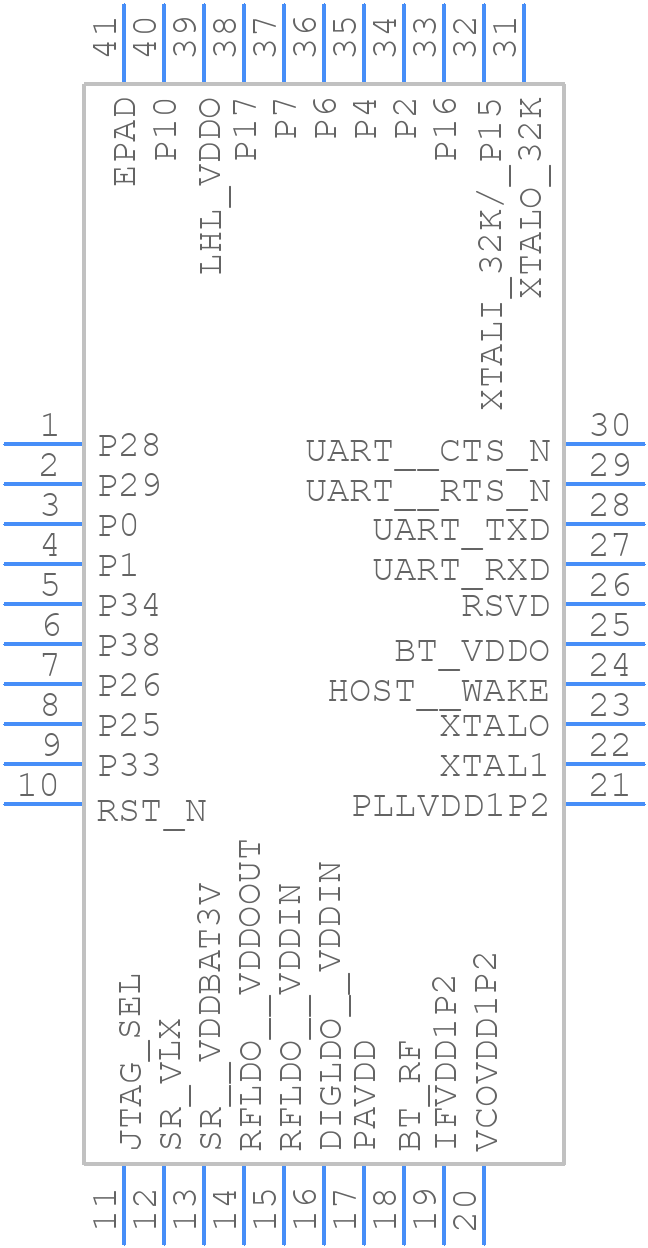

Symbol
CYW20719B2KUMLG - Infineon - PCB symbol
click to zoom
PCB Footprints
CYW20719B2KUMLG - Infineon PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 40-pin QFN 5.0 mm x 5.0 mm
click to zoom
3D Models
CYW20719B2KUMLG - Infineon - 3D model - Quad Flat No-Lead - 40-pin QFN 5.0 mm x 5.0 mm
click to zoom

CYW20719B2KUMLG Details

  • Manufacturer Part Number:

    CYW20719B2KUMLG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    3

  • JESD-30 Code:

    S-PQCC-N40

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.2SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    1.76 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

CYW20719B2KUMLG Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the CYW20719B2KUMLG is -40°C to +85°C.
  • To configure the device for optimal power consumption, you can use the power management features such as dynamic voltage and frequency scaling, and adjust the transmit power and data rate according to your application requirements. Additionally, you can use the device's low-power modes, such as sleep mode and deep sleep mode, to reduce power consumption when the device is not actively transmitting or receiving data.
  • The CYW20719B2KUMLG supports a maximum data transfer rate of 2 Mbps.
  • To implement secure data transmission using the CYW20719B2KUMLG, you can use the device's built-in security features such as AES encryption, secure boot, and secure firmware updates. Additionally, you can use the device's support for Bluetooth 5.0's security features, such as encryption and secure connections.
  • The range of the CYW20719B2KUMLG's Bluetooth 5.0 radio is up to 4 times the range of Bluetooth 4.2, which is approximately 200-400 meters (660-1312 feet) in ideal conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CYW20719B2KUMLG Overview

Use the download button to access the CYW20719B2KUMLG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CYW20, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
