D01-9952042 - Harwin

Description: IC Socket: 20 Pos Receptacle SIL Straight Wire Wrap Strip

Download D01-9952042 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

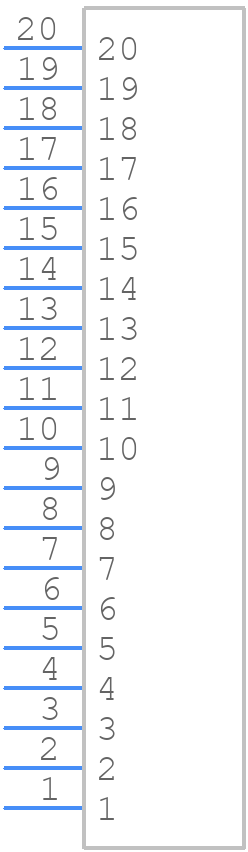

D01-9952042 - Harwin - PCB symbol
click to zoom
PCB Footprints

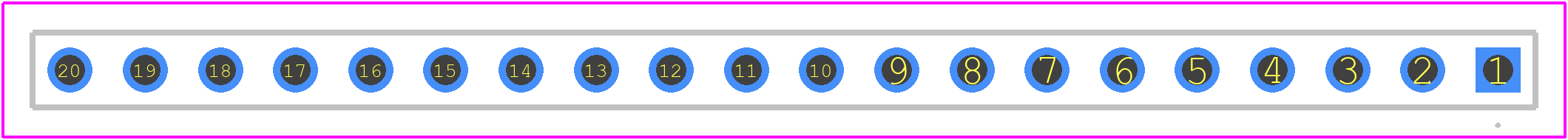

D01-9952042 - Harwin PCB footprint - Other - Other - D01-9952042-2
click to zoom
3D Models
D01-9952042 - Harwin - 3D model - Other - D01-9952042-2
click to zoom

D01-9952042 Details

  • Manufacturer Part Number:

    D01-9952042

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • YTEOL:

    7.38

  • Additional Feature:

    STANDARD: UL 94V-0

  • Body Breadth:

    0.1 inch

  • Body Depth:

    0.193 inch

  • Body Length:

    2 inch

  • Contact Configuration:

    RECTANGLE

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    RND PIN-SKT

  • Current Rating:

    1 A

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    SIP20

  • Dielectric Withstanding Voltage:

    1000VAC V

  • Housing Material:

    GLASS FILLED POLYCYCLOHEXYDIMETHYLENE TEREPHTHALATE

  • Insulation Resistance:

    10000000000 Ω

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Number of Contacts:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Termination Type:

    WIRE WRAP

D01-9952042 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (5-6 lbf-in).
  • Yes, the D01-9952042 is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
  • The operating temperature range for the D01-9952042 is -40°C to 125°C (-40°F to 257°F).
  • Yes, the D01-9952042 is designed to be resistant to corrosion and can withstand exposure to humidity and certain chemicals, but it's recommended to consult the datasheet and manufacturer's guidelines for specific environmental conditions.
  • The D01-9952042 is rated for up to 3A per contact, but it's recommended to consult the datasheet and manufacturer's guidelines for specific current-carrying capacity and derating factors.
