D01-9953242 - Harwin

Description: IC Socket: 32 Pos Receptacle SIL Straight Wire Wrap Strip

Download D01-9953242 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

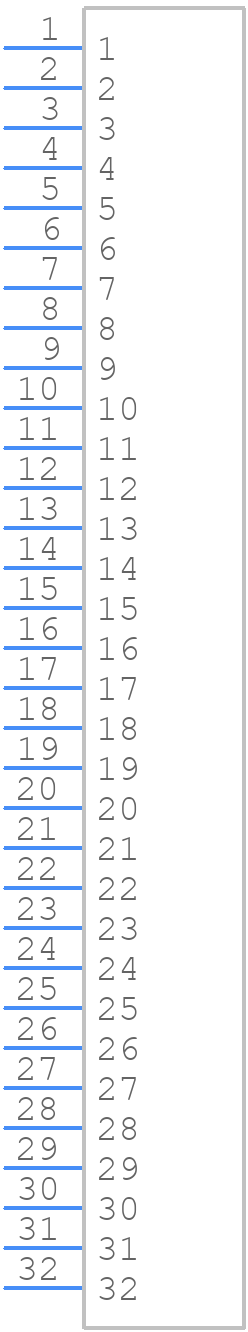

D01-9953242 - Harwin - PCB symbol
click to zoom
PCB Footprints

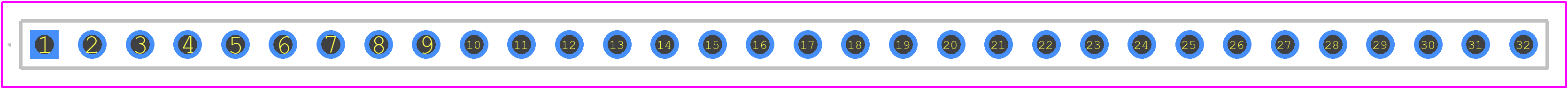

D01-9953242 - Harwin PCB footprint - Other - Other - D01-9953242-1
click to zoom
3D Models
D01-9953242 - Harwin - 3D model - Other - D01-9953242-1
click to zoom

D01-9953242 Details

  • Manufacturer Part Number:

    D01-9953242

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • YTEOL:

    6.5

  • Additional Feature:

    STANDARD: UL 94V-0

  • Body Breadth:

    0.1 inch

  • Body Depth:

    0.193 inch

  • Body Length:

    3.2 inch

  • Contact Configuration:

    RECTANGLE

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    RND PIN-SKT

  • Current Rating:

    1 A

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    SIP32

  • Dielectric Withstanding Voltage:

    1000VAC V

  • Housing Material:

    GLASS FILLED POLYCYCLOHEXYDIMETHYLENE TEREPHTHALATE

  • Insulation Resistance:

    10000000000 Ω

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Number of Contacts:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Termination Type:

    WIRE WRAP

D01-9953242 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and application.
  • Yes, the D01-9953242 is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's recommended to consult with Harwin's application engineers for specific guidance.
  • The maximum operating temperature for the D01-9953242 is 125°C, but it's recommended to derate the current rating at higher temperatures to ensure reliable operation.
  • No, the D01-9953242 is designed for use with wire sizes AWG 20 to AWG 24. Using a larger wire size may compromise the connector's performance and reliability.
  • Yes, the D01-9953242 is compatible with lead-free soldering processes, but it's recommended to follow Harwin's recommended soldering profile to ensure reliable assembly.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

D01-9953242 Overview

Use the download button to access the D01-9953242 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like D01-9, or try a keyword search, such as Sockets and Chip Carriers
