The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and application.
Yes, the D01-9973242 is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's recommended to follow the manufacturer's guidelines for mounting and securing the connector.
The D01-9973242 is rated for operating temperatures between -40°C to 125°C and can withstand moderate humidity levels. However, for extreme environmental conditions, it's recommended to consult with Harwin's technical support or consider using a specialized connector designed for harsh environments.
While the D01-9973242 is optimized for AWG 20-24 wires, it can accommodate smaller or larger wire sizes with some adjustments. However, it's essential to ensure the wire size and insulation type are compatible with the connector's design and ratings.
The D01-9973242 has a maximum current rating of 3A per contact, depending on the wire size and application. It's essential to consult the datasheet and follow the manufacturer's guidelines for current ratings and derating.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
D01-9973242 Overview

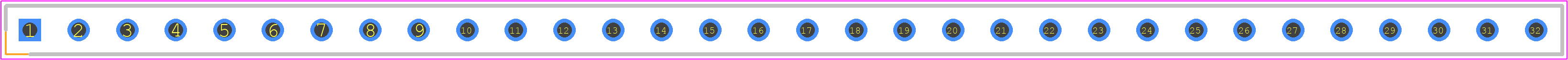

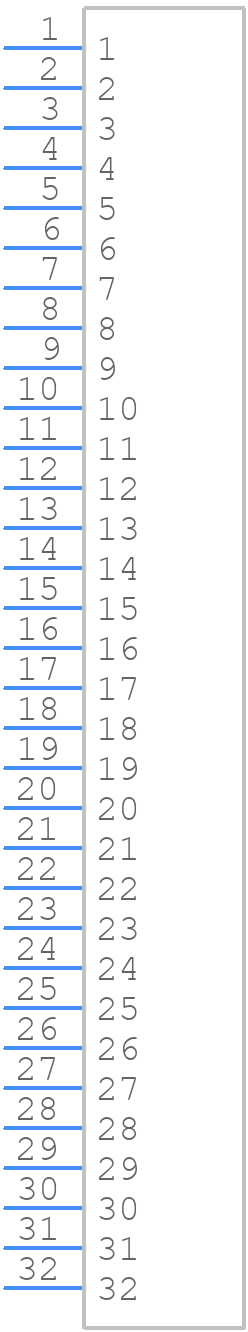

Use the download button to access the D01-9973242 schematic symbol, PCB footprint, and 3D model.
