The recommended torque for the screw threads of the D0814-42 connector is 0.5 Nm to 1.5 Nm, depending on the application and environmental conditions.
Yes, the D0814-42 connector is designed to withstand high-vibration environments, with a tested vibration resistance of 10-2000 Hz, 10G peak acceleration.
Yes, the D0814-42 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to +125°C and a humidity rating of 95% RH at 40°C.
The D0814-42 connector has a mating cycle life of 500 cycles, making it suitable for applications where frequent mating and unmating are required.
No, the D0814-42 connector is designed to be used with Harwin's proprietary contacts, which are specifically designed to ensure reliable connections and minimize signal degradation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
D0814-42 Overview

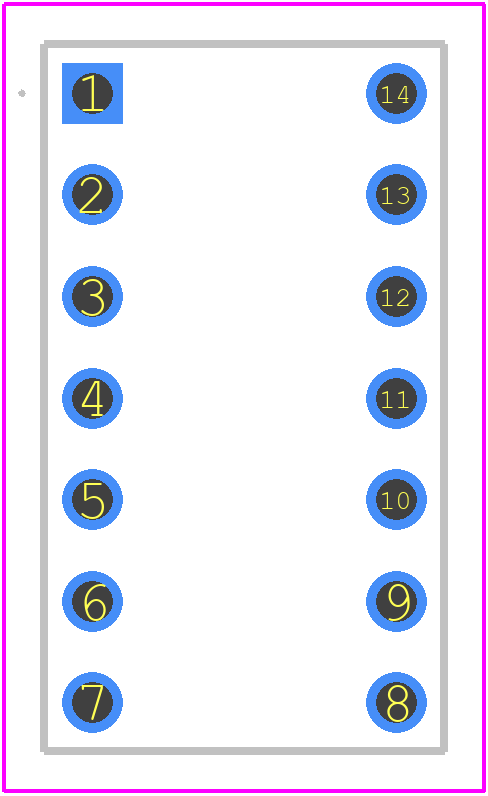

Use the download button to access the D0814-42 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like D0814,
or try a keyword search, such as Sockets and Chip Carriers
