D12390F20V - Renesas Electronics

Description: The H8S/2398, 2357 Group is supported only for customers who have already adopted these products. The RX651 Group is recommended for new designs.

Download D12390F20V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

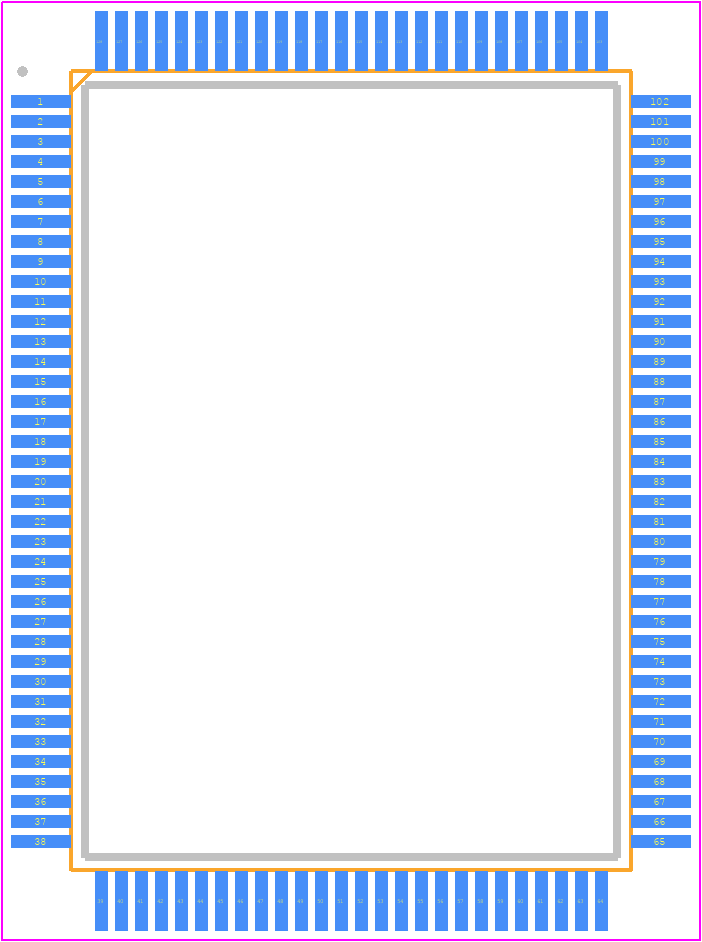

D12390F20V - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - FP-128B
click to zoom
3D Models
D12390F20V - Renesas Electronics  - 3D model - Quad Flat Packages - FP-128B
click to zoom

D12390F20V Details

  • Manufacturer Part Number:

    D12390F20V

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    FQFP

  • Package Description:

    FQFP-128

  • Pin Count:

    128

  • Manufacturer Package Code:

    PRQP0128KB

  • HTS Code:

    8542.31.00.20

  • Factory Lead Time:

    4 Weeks

  • Date Of Intro:

    2018-06-18

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Has ADC:

    YES

  • Bit Size:

    16

  • DAC Channels:

    YES

  • DMA Channels:

    NO

  • JESD-30 Code:

    R-PQFP-G128

  • JESD-609 Code:

    e6

  • Length:

    20 mm

  • Number of Terminals:

    128

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -20 °C

  • PWM Channels:

    NO

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FQFP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLATPACK, FINE PITCH

  • RAM (bytes):

    4096

  • Seated Height-Max:

    3.15 mm

  • Speed:

    20 MHz

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Finish:

    TIN BISMUTH

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER
