D12F200A - Delta Electronics

Description: Non-Isolated DC/DC Converters POL DC/DC Module, 40A, Vertical

Download D12F200A Model
Schematic
symbols

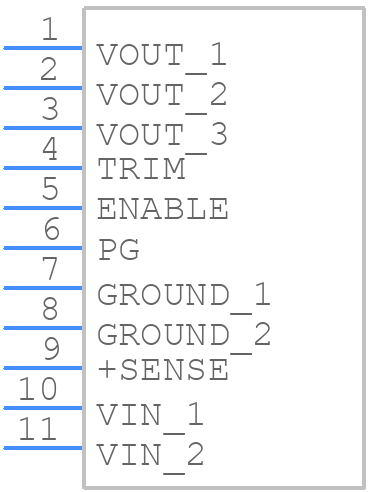

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

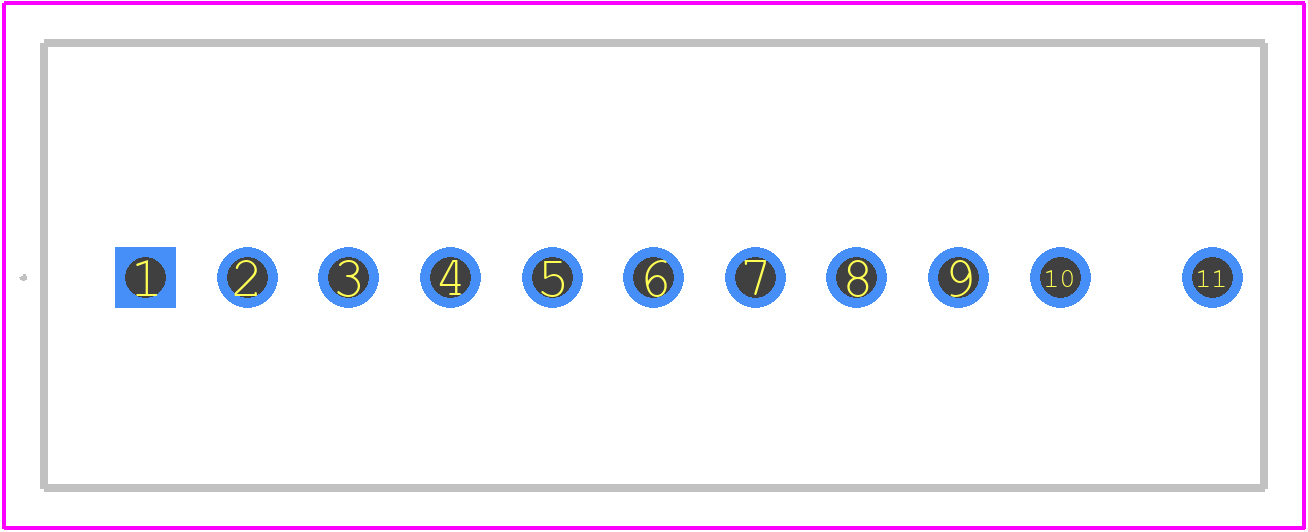

D12F200A - Delta Electronics PCB footprint - Other - Other - D12F200A-3
click to zoom

D12F200A Details

  • Manufacturer Part Number:

    D12F200A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MODULE

  • Package Description:

    ROHS COMPLIANT, PACKAGE-11

  • Pin Count:

    11

  • ECCN Code:

    EAR99

  • Manufacturer:

    Delta Electronics Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    13.8 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-XSMA-T11

  • Length:

    38.48 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    11

  • Output Voltage-Min:

    0.6 V

  • Output Voltage-Nom:

    2.5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    28.19 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    200 W

  • Trim/Adjustable Output:

    YES

  • Width:

    10.85 mm

D12F200A Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a large copper area for heat dissipation is recommended. The PCB should have a thermal relief pattern under the module to ensure good heat transfer.
  • Ensure good airflow around the module, use a heat sink if necessary, and follow the recommended derating curves for high-temperature operation.
  • A pi-filter or a common-mode choke is recommended to reduce EMI emissions. The module's output should be decoupled with a capacitor and a ferrite bead.
  • Yes, but ensure that the modules are synchronized and have a common control signal. Also, follow the recommended layout and thermal management guidelines.
  • A low-ESR ceramic capacitor with a value of 10-22uF is recommended for input filtering and decoupling.
