The recommended torque value is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific application requirements and follow the manufacturer's guidelines.
Yes, the D2814-42 is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's crucial to ensure proper mounting and screw torque to maintain the connector's integrity.
The D2814-42 is designed to operate in temperatures ranging from -40°C to 125°C and can withstand moderate humidity levels. However, for extreme environmental conditions, it's recommended to consult with Harwin's technical support or consider using a more specialized connector.
The maximum current rating for the D2814-42 is 3A per contact, but it's essential to consider the specific application requirements, wire gauge, and insulation to ensure safe and reliable operation.
The D2814-42 is designed to be compatible with other connectors that meet the IEC 61760-1 standard. However, it's recommended to verify compatibility with the specific mating connector and consult with Harwin's technical support if necessary.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
D2814-42 Overview

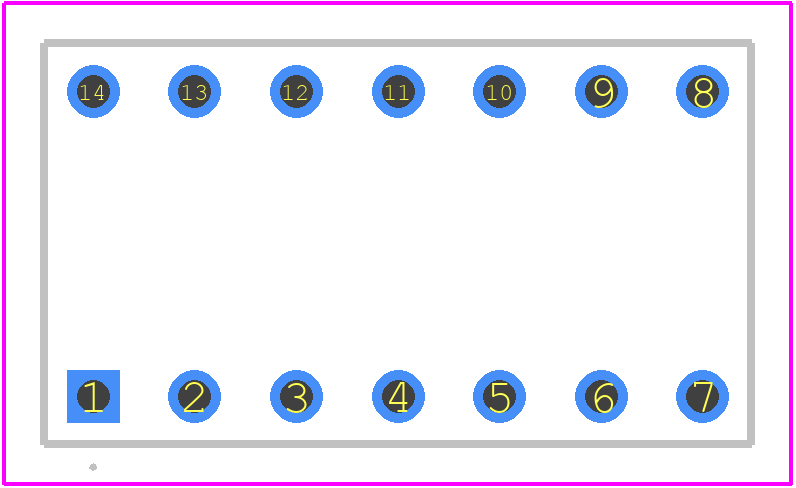

Use the download button to access the D2814-42 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like D2814,
or try a keyword search, such as Sockets and Chip Carriers
