The recommended torque for the screw threads is 0.5 Nm to 1.5 Nm, depending on the application and environmental conditions.
Yes, the D2816-42 is designed to withstand high-vibration environments. However, it's essential to ensure proper mounting and screw torque to maintain connector integrity.
The D2816-42 has an operating temperature range of -40°C to 125°C. However, it's crucial to consider the specific application and potential thermal stresses when using the connector in high-temperature environments.
The recommended mating cycle for the D2816-42 is 500 cycles. However, this may vary depending on the application, environmental conditions, and connector maintenance.
The D2816-42 has a sealed construction, making it suitable for use in harsh environments. However, it's essential to ensure the connector is properly sealed and maintained to prevent ingress of contaminants.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
D2816-42 Overview

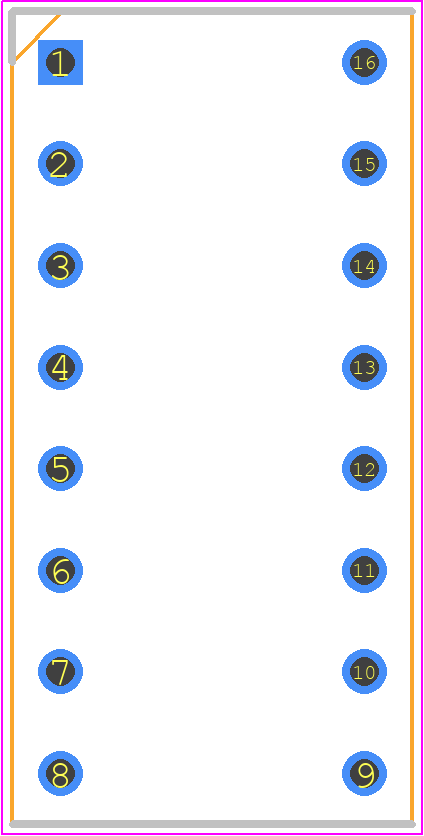

Use the download button to access the D2816-42 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like D2816,
or try a keyword search, such as Sockets and Chip Carriers
