D2820-42 - Harwin

Description: IC Socket: 10+10 Pos Receptacle DIL Straight THT

Download D2820-42 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
D2820-42 - Harwin - PCB symbol
click to zoom

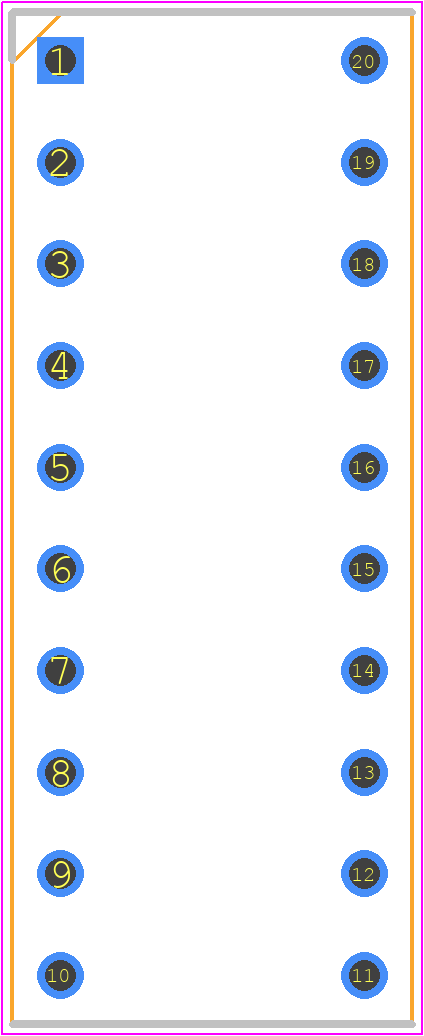

PCB Footprints
D2820-42 - Harwin PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - D2820-42
click to zoom
3D Models
D2820-42 - Harwin - 3D model - Dual-In-Line Sockets - D2820-42
click to zoom

D2820-42 Details

  • Manufacturer Part Number:

    D2820-42

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0

  • Body Breadth:

    0.394 inch

  • Body Depth:

    0.165 inch

  • Body Length:

    0.996 inch

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    RND PIN-SKT

  • Current Rating:

    1 A

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP20

  • Dielectric Withstanding Voltage:

    1400VAC V

  • Housing Material:

    PLASTIC

  • Insulation Resistance:

    10000000000 Ω

  • JESD-609 Code:

    e3

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Termination Type:

    SOLDER

D2820-42 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw threads is 0.5 Nm to 1.5 Nm, depending on the application and environmental conditions.
  • Yes, the D2820-42 is designed to withstand high-vibration environments, with a vibration testing rating of 10-2000 Hz, 10G peak acceleration.
  • Yes, the D2820-42 is designed to operate in harsh environments, with an operating temperature range of -40°C to +125°C and a humidity rating of 95% RH at 40°C.
  • The D2820-42 has a mating cycle life of 500 cycles, making it suitable for applications where frequent mating and unmating is required.
  • Yes, the D2820-42 can be used with PCB thicknesses ranging from 1.2mm to 2.4mm, but the recommended thickness is 1.6mm for optimal performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

D2820-42 Overview

Use the download button to access the D2820-42 schematic symbol, PCB footprint, and 3D model.
